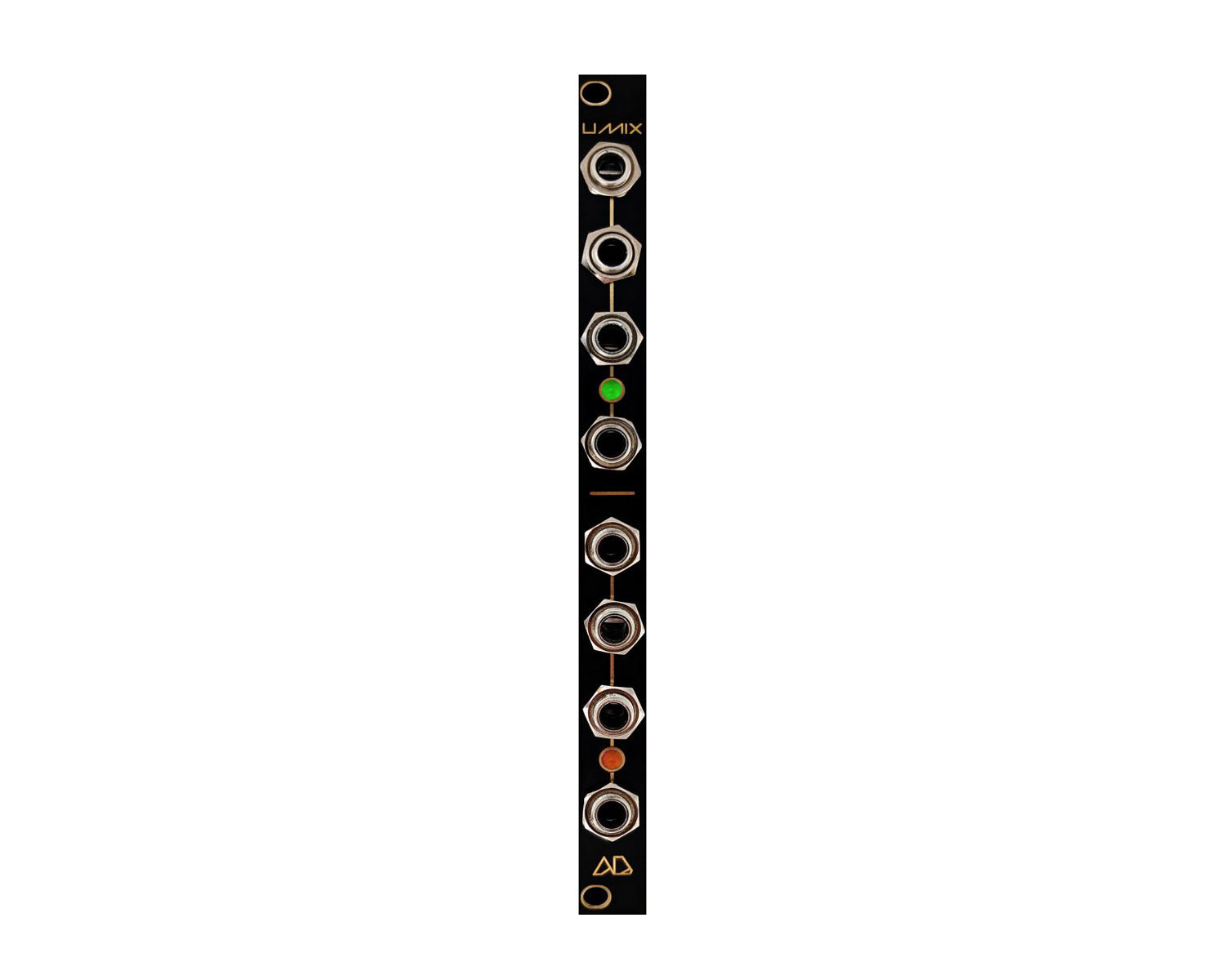

The Abyss Devices uMix is a dual three-to-one or single six-to-one unity mixer with a low, single PCB depth perfect for slim cases.
Each output has an isolated bipolar red/green LED for clear monitoring, and the back has connectors to daisy-chain multiple uMix, aMix, or VI Mix units together. uMix is also DC-coupled, allowing use with audio, control voltages, gates, and triggers, so if you need to combine signals without taking up too much space, uMix is a great solution.
Features:
- 6-1 or 3-1 Mixer
- Top 3 inputs normalized to the bottom section Can handle audio and CV, including gates and triggers Input/output connectors on the back for chaining multiple units together Compatible with aMix and VI Mix modules Isolated bipolar red/green LED for each output Only 1 PCB deep
Product Specs
- Item Number: 24764
- Make: Abyss Devices
- Model: uMIX
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Mixer Utility
- Made In: Canada
- MPN: AB-UMIX
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 2 HP 20 mm deep
- Power: 20 mA +12V 20 mA -12V 0 mA 5V
