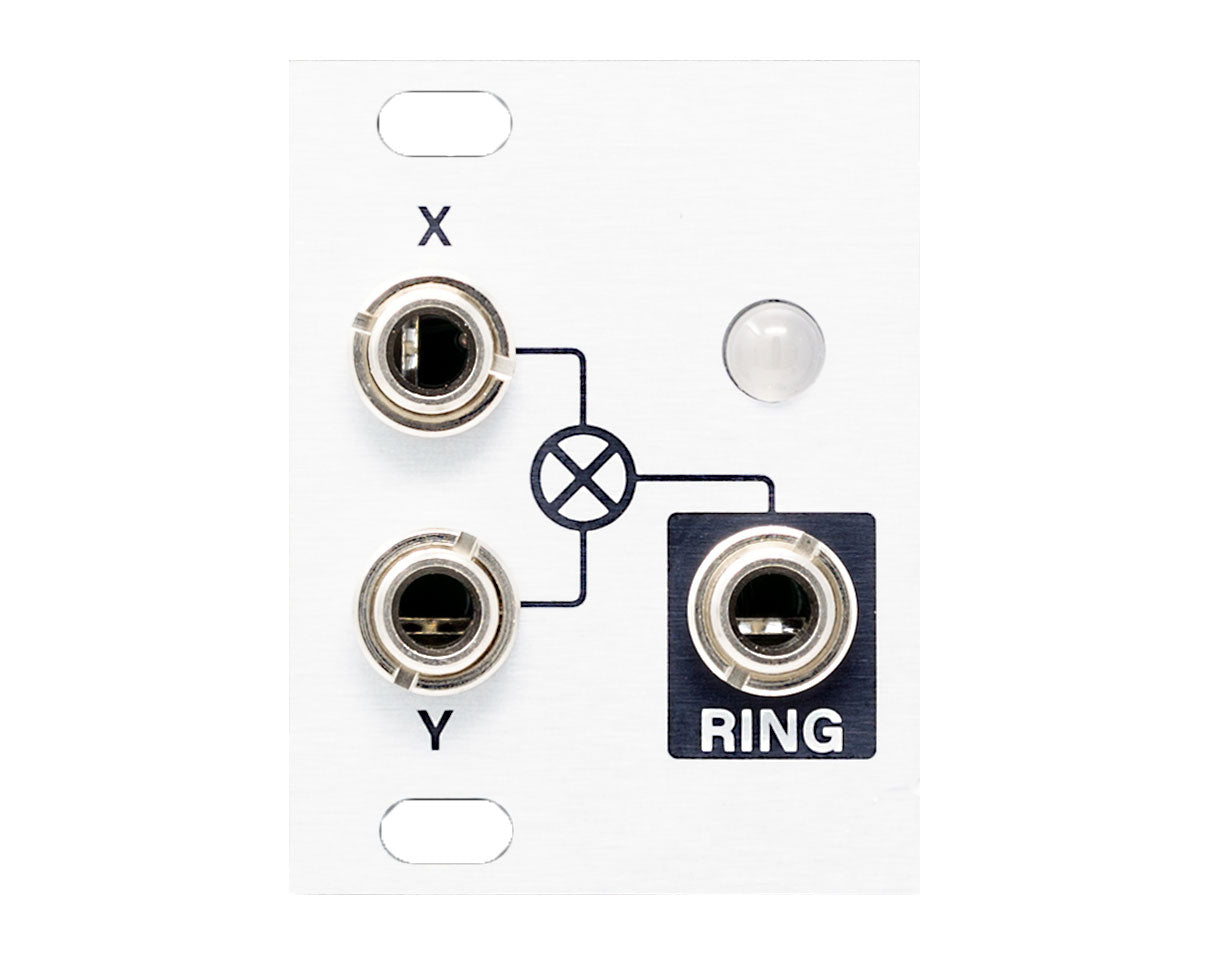

Intellijel Ringmod 1U

Ring Modulation is a classic synthesis technique that takes two source waveforms and generates a third waveform, which contains the sum and difference frequencies of the two inputs.

At audio rates, ring modulation creates a fairly inharmonic and ‘metallic’ sound. At LFO rates, ring modulation can generate interesting, complex modulation shapes.

##Features:
 * Active ring modulator that uses a high quality SSI2162 VCA IC.
 * DC coupled so it can be used for both CV and audio.
 * Can be used with unipolar control signals as a linear VCA
 * Compact size

 * Width: 6HP
 * Depth: 32mm
 * Power: 25mA @ +12V / 20mA @ -12

Product Specs

• Item Number: 24098
• Make: Intellijel
• Model: Ringmod 1U
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Ring Modulator Utility VCA
• Made In: Canada
• MPN: RINGMOD-1U
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 32 mm deep
• Power: 25 mA +12V 20 mA -12V ? mA 5V
