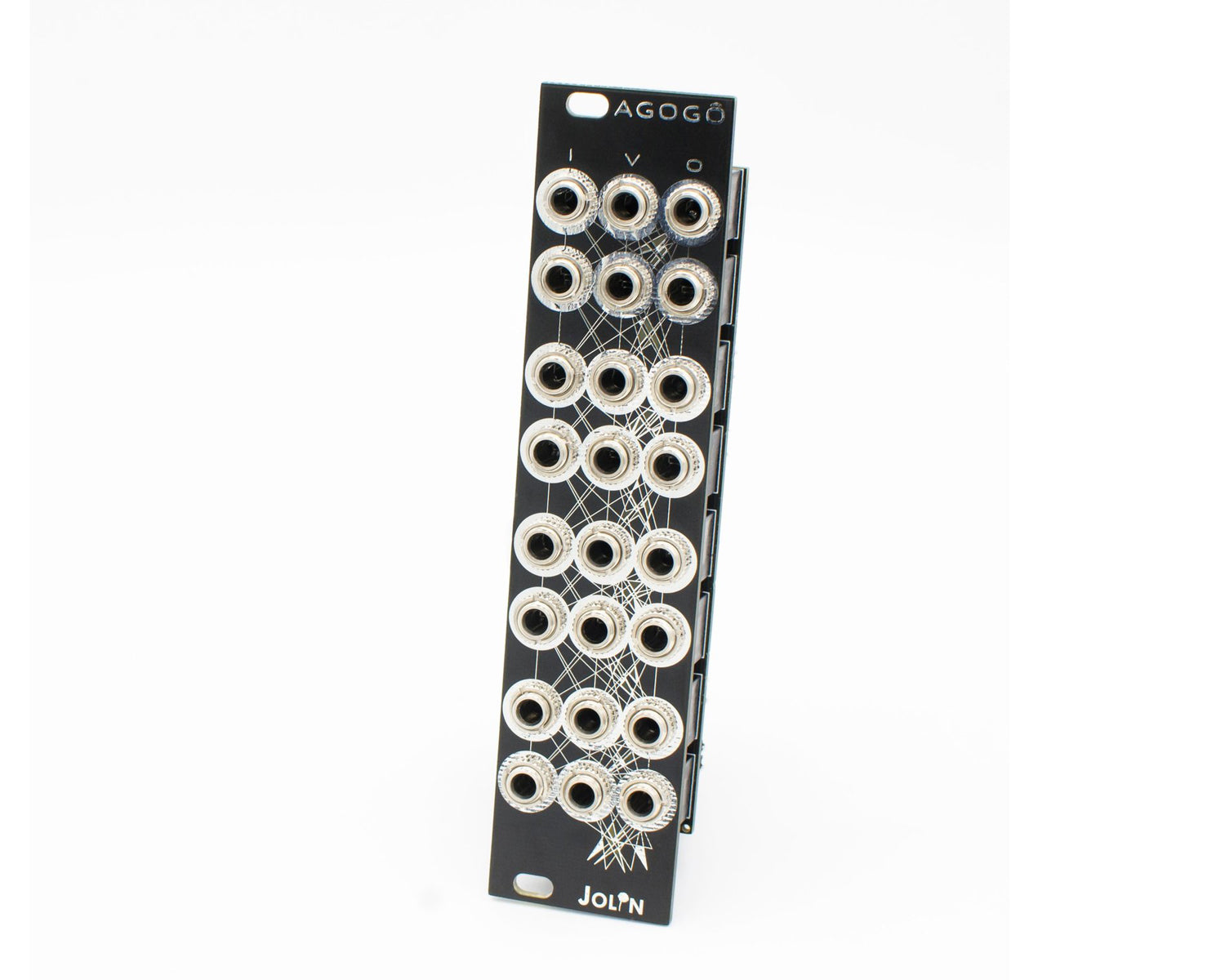

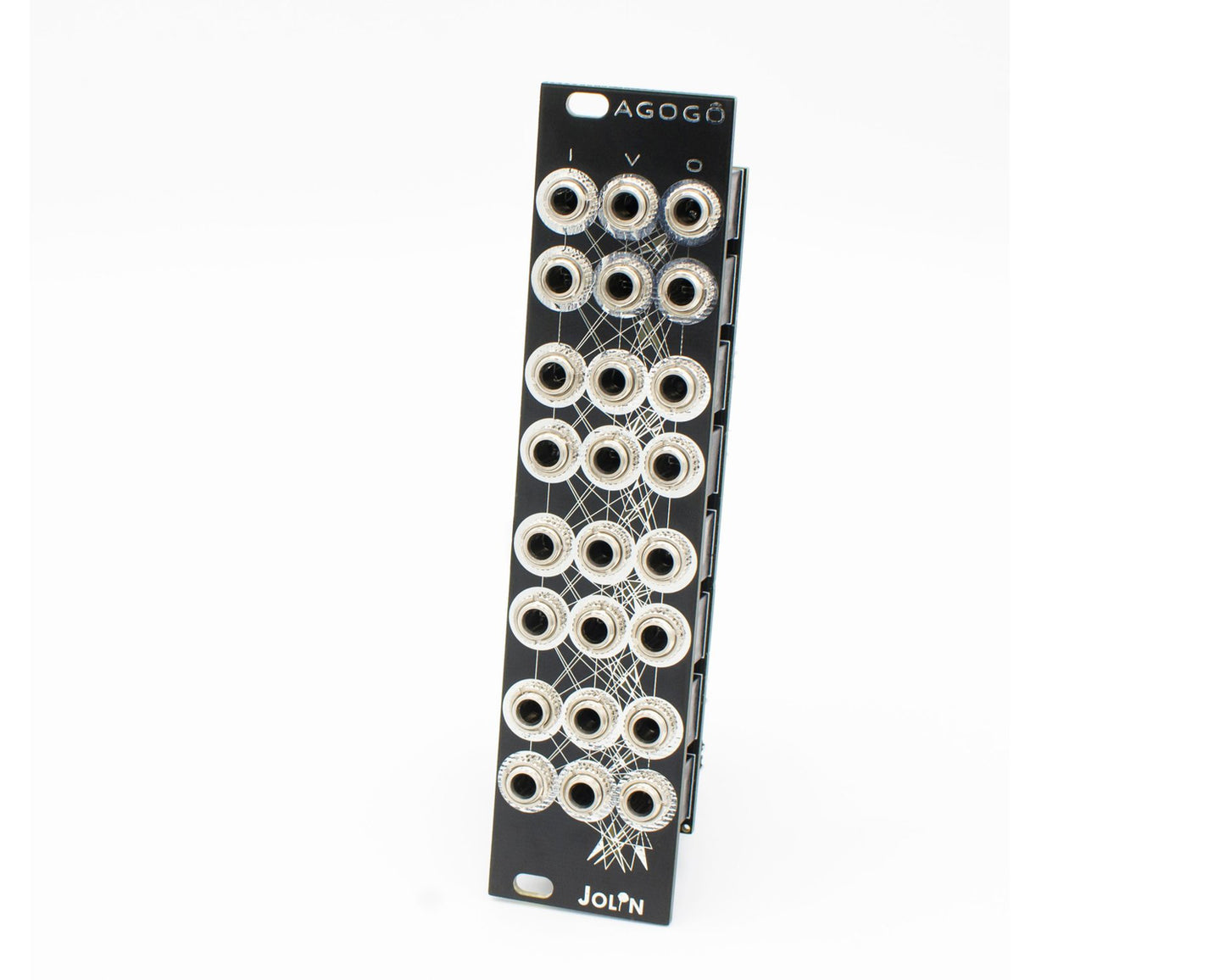

Jolin Lab AGOGO

AGOGO is an octal analogue vactrol-based low pass gate and mixer in a cascade configuration.

Each one of its input, CV and output is normalized and buffered to the next one: it can be used as a multiplier and a mixer for both audio and CV.

Features:

• 8 independent vactrol LPGs.
• Classic logarithmic vactrol curve and latency.
• Two LPG flavours: brighter – blue LEDs – and darker – red LEDs.
• Open design signal path: break the normalization at any point to change its configuration.
• Input and CV are normalled and they flow top to bottom when no jack is inserted.
• Outputs are summed to create sub-mix on the go.
• Unlimited units can be chained together.
• Works with audio and CV sources.

Product Specs

• Item Number: 24072
• Make: Jolin Lab
• Model: AGOGO
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Low Pass Gate Mixer Utility Dual/Stereo
• Made In: Italy
• MPN: AGOGO
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 28 mm deep
• Power: 150 mA +12V 90 mA -12V 0 mA 5V
