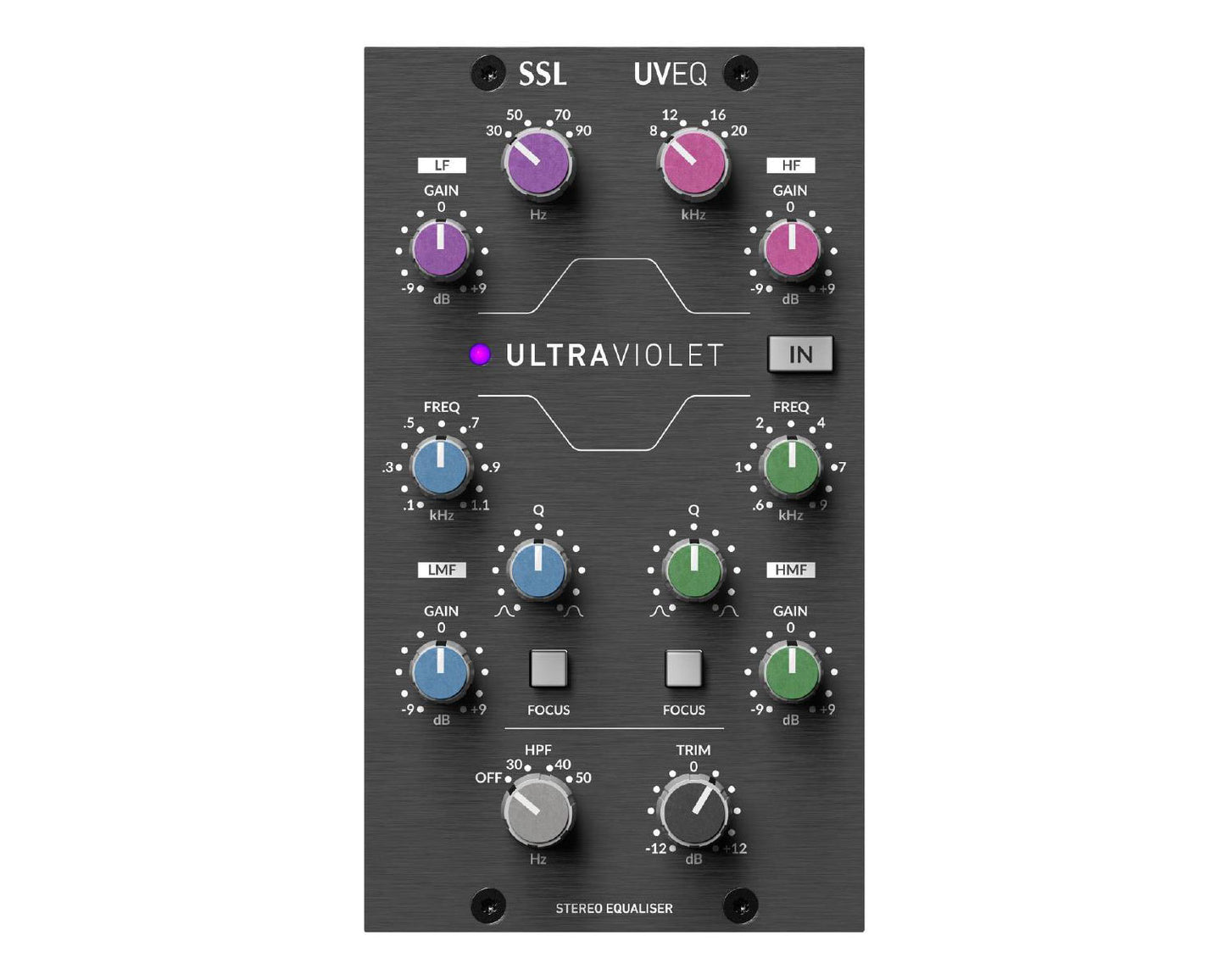

Solid State Logic SS-UV-500 Ultraviolet Stereo Equaliser Module

The SSL 500 Series ULTRAVIOLET Stereo Equaliser takes the acclaimed min­imum phase-shift EQ section from Fusion and puts it into the 500 Series format.

The ULTRAVIOLET EQ takes things a little further than Fusion by adding two dedicated mid-bands, with a unique Focus control, for ultimate EQ flexibility.

An ideal partner to the legendary 500 Series SSL Bus Compressor, the ULTRAVIOLET EQ draws on the SSL legacy of careful selection of frequencies and response curves to create a musical and intuitive EQ designed to quickly dial in a radio-ready sound for your mix.

/##Tech Specs:

• Module signal: Stereo
• LF Shelf EQ: +/- 9dB Gain at 30, 50, 70, 90Hz
• HF Shelf EQ: +/- 9dB Gain at 8k, 12k, 16k and 20kHz.
• HMF Parametric EQ: +/- 9dB Gain 400Hz-6kHz
• LMF Parametric EQ: +/- 9dB Gain 100Hz-1.1kHz
• Switchable HPF: OFF, 30, 40, 50Hz
• Gain Trim: +/- 12dB
• Switched Bypass: Yes

Video: https://youtu.be/h1R0PdmpXQE

Product Specs

• Item Number: 23977
• Make: Solid State Logic
• Model: SS-UV-500 Ultraviolet
• Condition: Brand New
• Finish: Grey
• Categories: pro-audio ⇒ 500-series
• Function: Equalizer Dual/Stereo
• Made In: United Kingdom
• MPN: SS-UV-500
• UPC: 878076001579
• Modular Grid: 500 Series ⓘ ＋
• Dimensions*: 2 Slot 45 mm deep

* User contributed details
