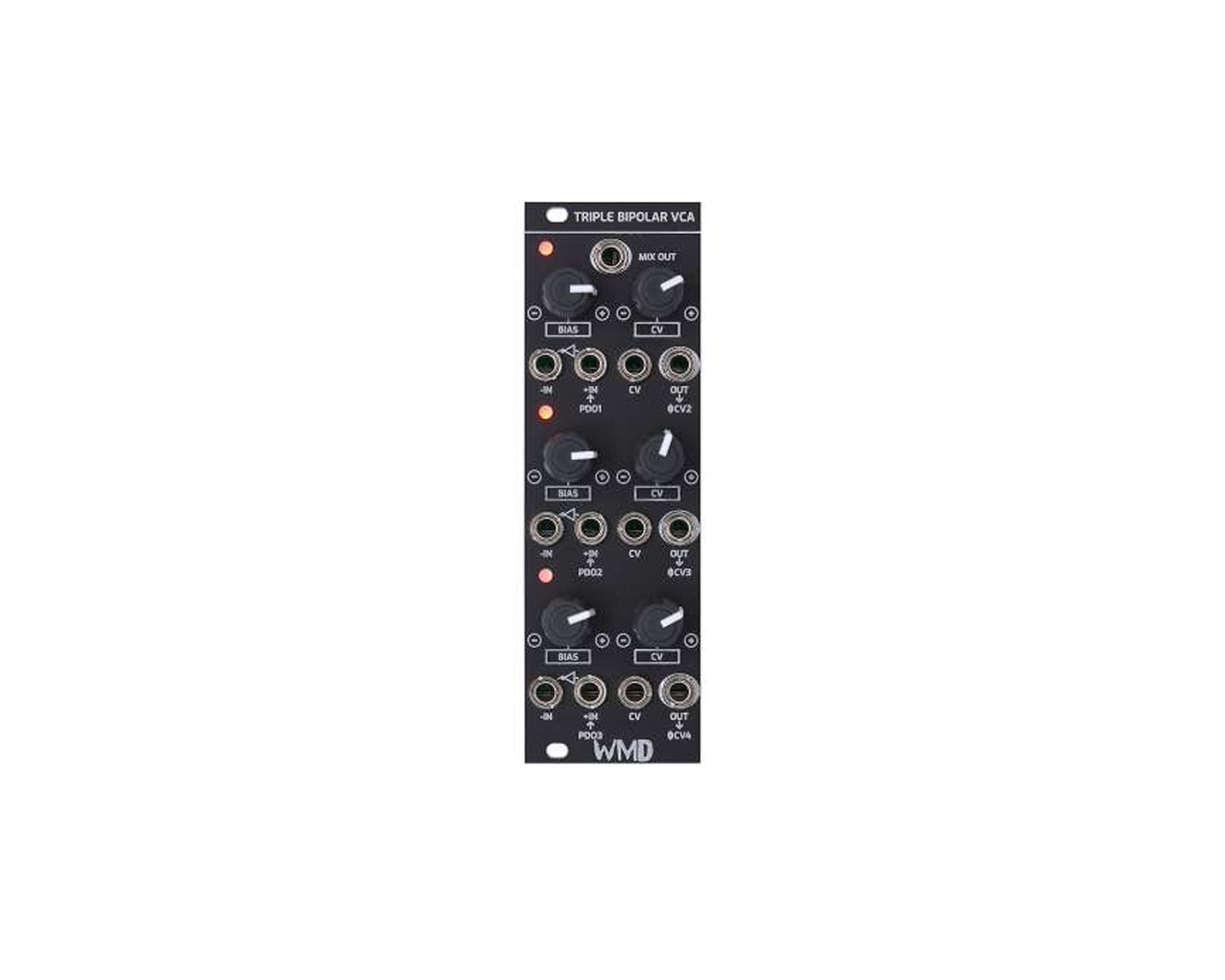

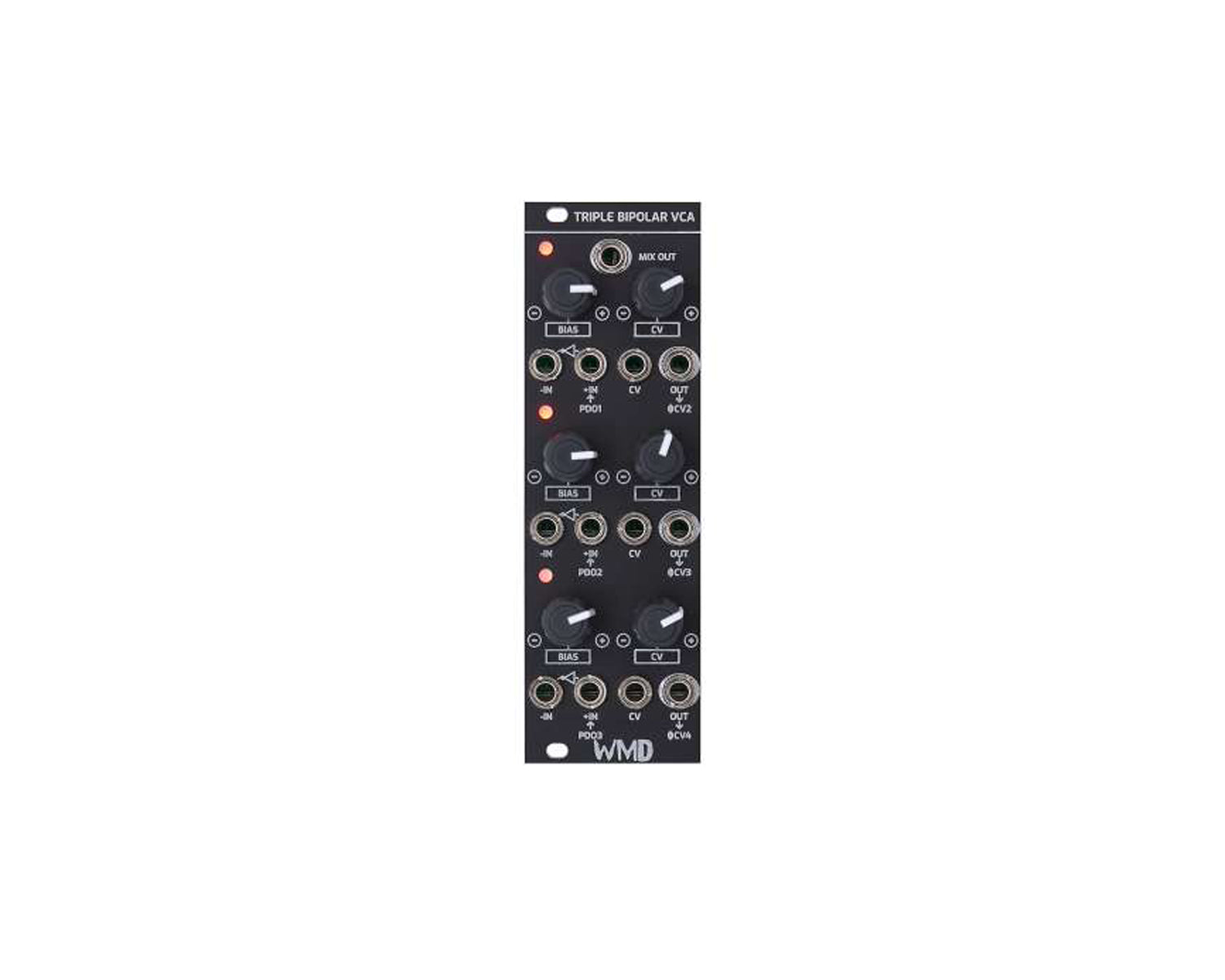

WMD Triple Bipolar VCA Input expansion for the PDO & Standalone VCA

The WMD Triple Bipolar VCA is an 8HP input side expansion for the WMD Phase Displacement Oscillator (PDO) that adds three modulating inputs (inverting, polarizing, and bipolar) to the PDO’s phase modulation inputs.
Despite being an expander, it also works very well as a standalone module.

The module features a dedicated crossfading input, linear response, summed mix output, dedicated bipolar attenuators for incoming CV, and three color LEDs.

Video: https://youtu.be/Bd-AlzqI7Z8

Product Specs

• Item Number: 23199
• Make: WMD
• Model: Triple Bipolar VCA
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Mixer Ring Modulator VCA CV Modulation Expander Polarizer
• Made In: United States
• MPN: WMD-TRIPLEBIPOLARVCA
• UPC: 857393003527
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 28 mm deep
• Power*: 80 mA +12V 75 mA -12V 0 mA 5V

* User contributed details
