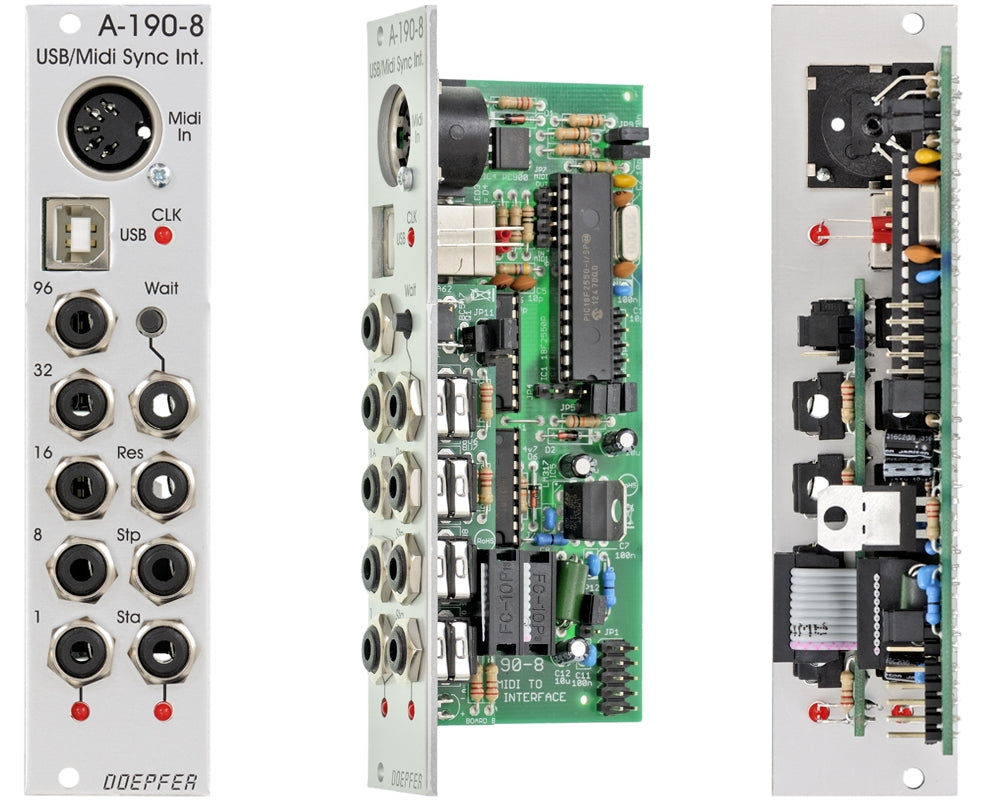

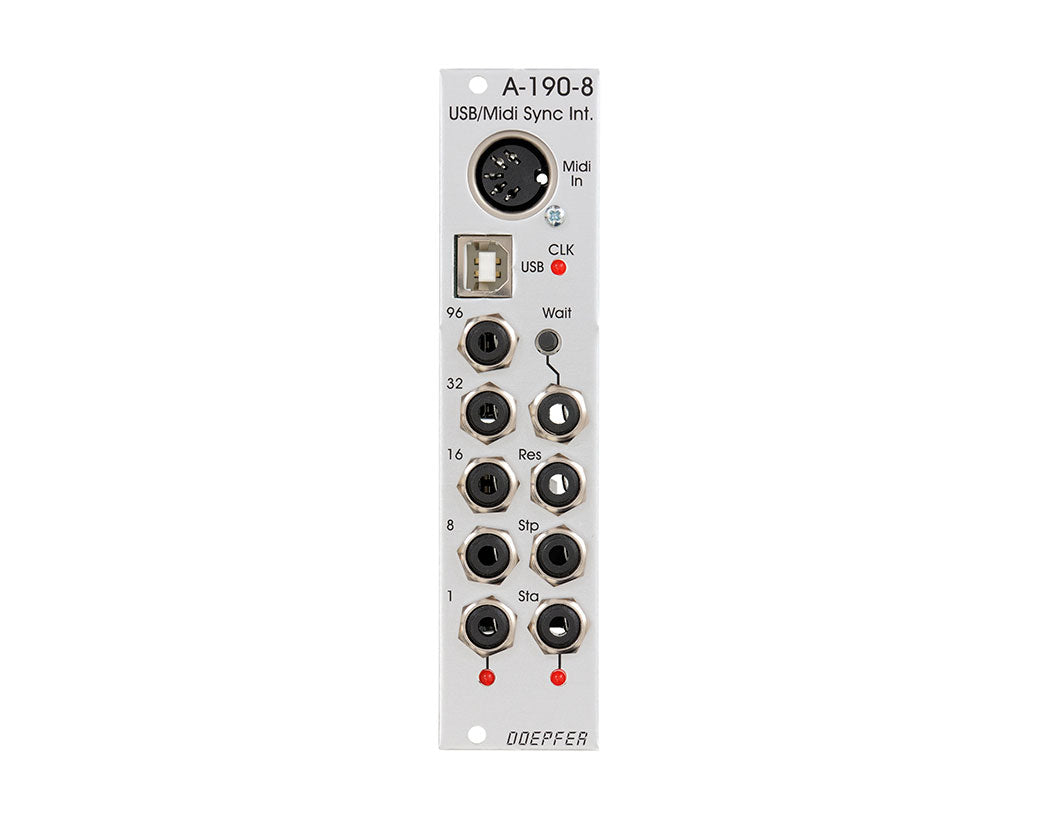

Module A-190-8 Midi/USB to Sync interface. The main application of the module is the control of clocked A-100 modules like sequencers (A-155), sequencer controllers (A-154), trigger divider (A-160 or A-163), trigger sequencer (A-161) and similar units. It may be used also to reset or sync LFOs (e.g. A-145, A-147, A-143-4) or to trigger envelope generators (A-140, A-141-2, A-143-1, A-143-2) with a fixed clock rate.

These are the most important features of this version of the module:

  • Midi input (recognises only Midi realtime messages clock, start, stop and continue)
  • USB input for Midi via USB
  • Clock outputs:
    • 96: outputs the Midi clock 1:1 (96 pulses per measure/ppm or 24 pulses per quarter note/ppq)
    • 32: outputs the Midi clock divided by 3 (32 pulses per measure/ppm or 8 pulses per quarter note/ppq)
    • 16: outputs the Midi clock divided by 6 (16 pulses per measure/ppm or 4 pulses per quarter note/ppq)
    • 8: outputs the Midi clock divided by 12 (8 pulses per measure/ppm or 2 pulses per quarter note/ppq)
    • 1: outputs a pulse at the start of each measure
  • Other outputs:
    • Start: outputs a pulse at each Midi Start or Continue message or generates a gate signal that remains in the high state until a Midi Stop message occurs (selectable via jumper)
    • Stop: outputs a pulse at each Midi Stop message
    • Reset: outputs a pulse at each Midi Start message that follows a Midi Stop message
    • Wait control input, can be selected by means of a jumper between Gate function or Switch function: in Gate mode the positive edge of a gate signal is used to init the Wait state, in Switch mode an external switch that connects to GND is used to init the Wait state (equivalent to Switch-Trigger)
  • Wait button / Wait control input: Whenever the Wait button is operated or a positive voltage is applied to the Wait input the module waits for the next measure start until the clock signals are generated.
  • LED displays for clock, "1" and start (display of Start depends upon the chosen Start mode, see above)
  • output voltages can be selected between +5V and +12V by means of an internal jumper (for DIN Sync applications +5V has to be used !)
  • firmware updates via USB (provided that there will be updates available)
