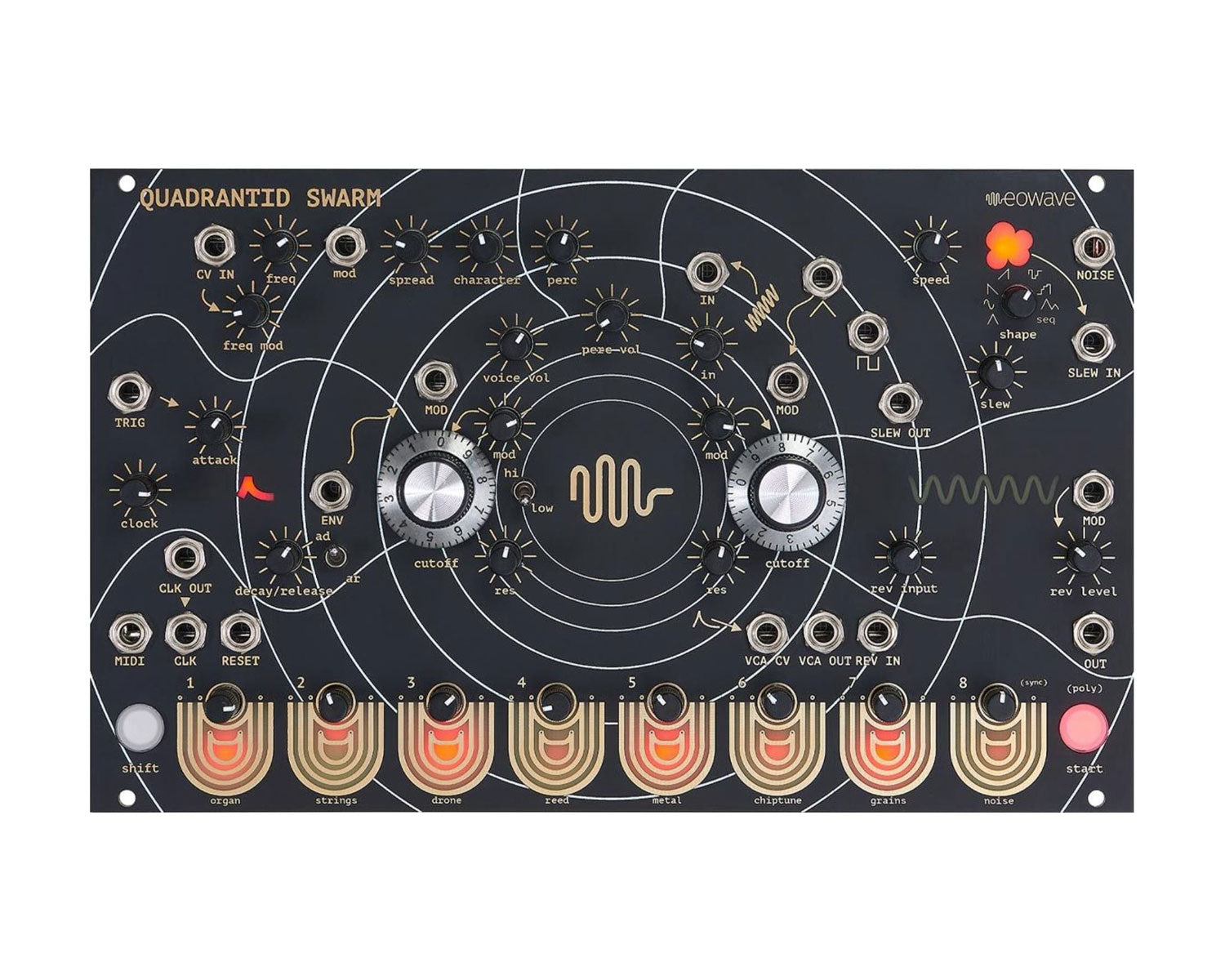

Eowave Quadrantid Swarm Polyphonic Hybrid Sound Generator Eurorack Module

The Eowave Quandratid Swarm module is a semi-modular digital hybrid Eurorack module with a vast array of sounds, ready to be integrate with the rest of your Eurorack system.
Combining a triangle oscillator with spread folding with a secondary percussive voice, it is capable of an incredible amount of textures and timbres.

The touchplate interface is configurable in three modes: monophonic touchplate, polyphonic touch plate, and step sequencer.
The eight-step sequencer has both an internal clock and can be clocked from an external clock source.
Additionally, the Quadrantid Swarm features a MIDI input to sequence the synthesizer from MIDI sources. Add motion to your sounds with an eight-waveform LFO with slew limiter, while the two-stage envelope modulates the VCA and VCF concurrently.

The module requires no patch cables to make sounds, however, it contains a multitude of CV inputs to add another dimension of modulation and control.

Video: https://youtu.be/eXqL4d9BpWE

Product Specs

• Item Number: 21972
• Make: Eowave
• Model: Quadrantid Swarm - Module
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Reverb Synth Voice Digital Oscillator Filter MIDI Sequencer LFO
• Made In: France
• MPN: eoQSm
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 41 HP 28 mm deep
• Power*: 170 mA +12V 70 mA -12V 0 mA 5V

* User contributed details
