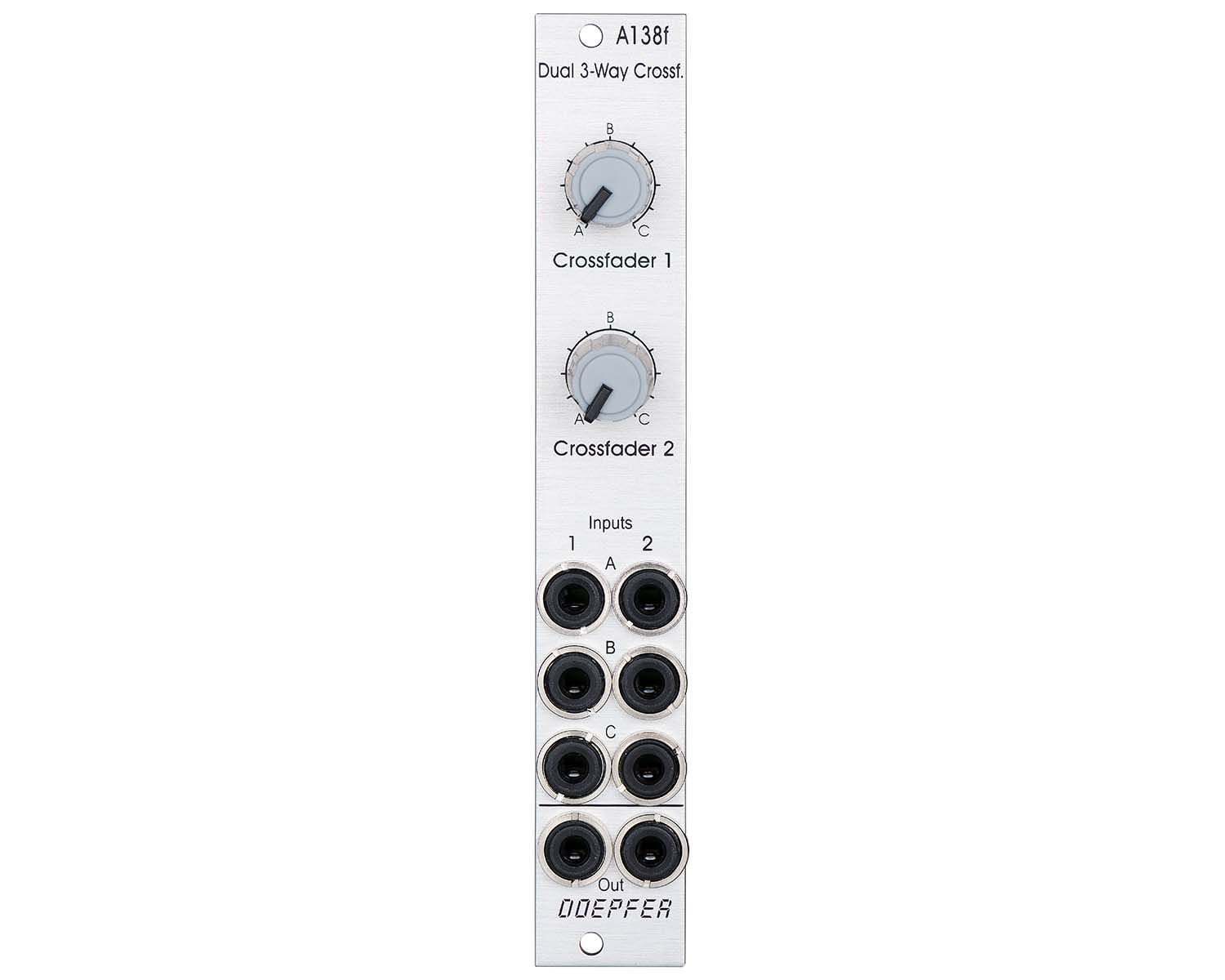

Module A-138f contains two identical crossfaders with three inputs and one output each. Three different signals are connected to the inputs A, B and C. In the ccw position of the corresponding control only signal A appears at the output. Between ccw and center position a mix of the signals A and B appears at the output. In the center position only signal B appears at the output. Between center and cw position a mix of signals B and C appears at the output. In the cw position only signal C appears at the output. The module is DC coupled and can be used for both audio and control voltage processing.
Product Specs
- Item Number: 20956
- Make: Doepfer
- Model: A-138f Dual 3-Way Crossfader
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Mixer Panning Dual/Stereo
- Made In: Germany
- MPN: A-138f
- EAN: 4250711113919
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 4 HP 30 mm deep
- Power*: 10 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
