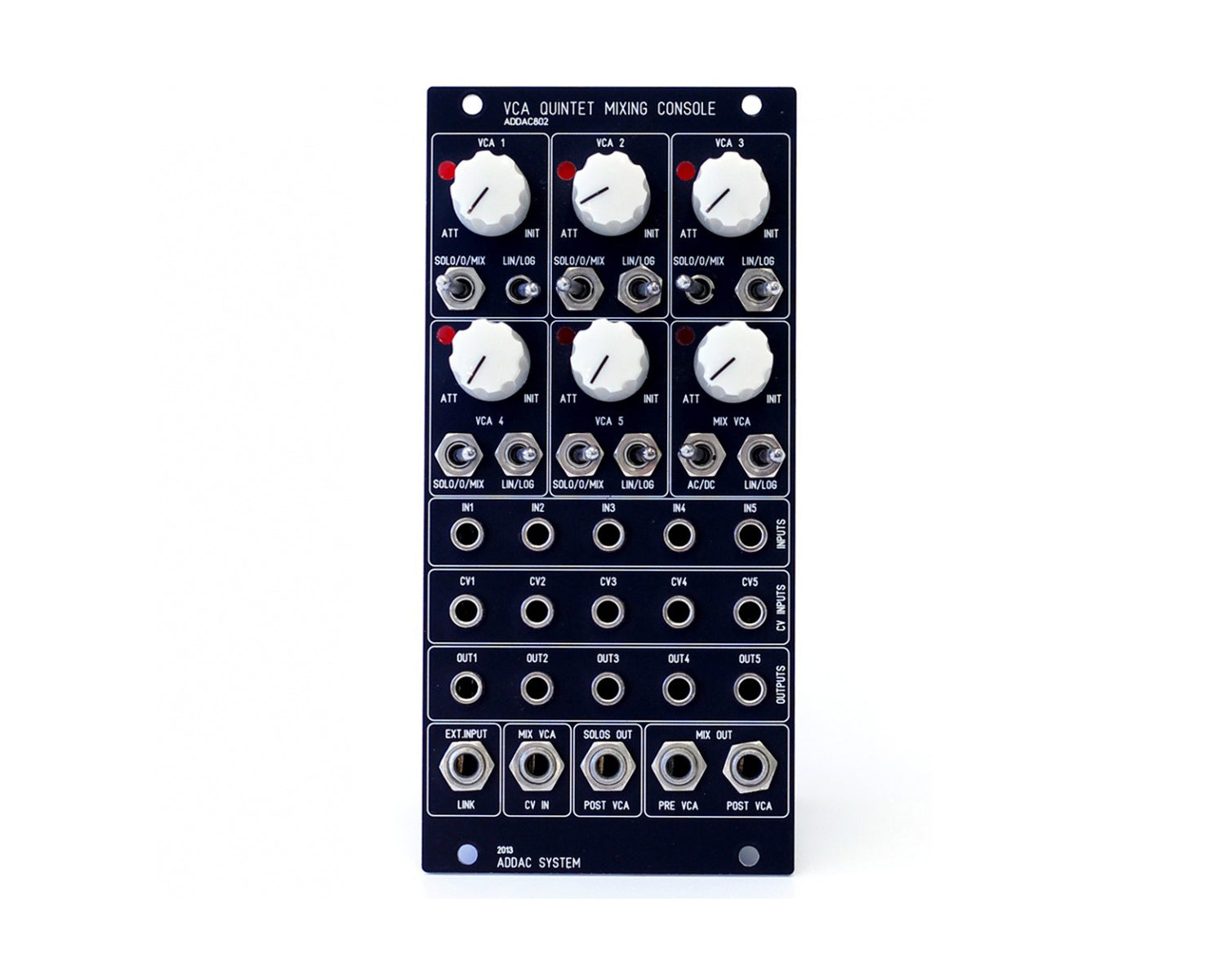

The ADDAC802 VCA Quintet is a 12HP, five-channel analog VCA and mixer great for dynamically combining different signals in a modular situation.
Each channel has a CV input and attenuator to set the level of amplification and there is also a switch to route the channel to the mix output, the solo output, or to mute it. Another switch selects the VCA response between linear and logarithmic.
- Five-channel VCA and mixer
- Each channel can be soloed, mixed, or muted via a switch
- VCAs can be linear or logarithmic
- Individual VCA outputs
- Final output VCA with CV input
- Mix output either pre or post mix-VCA
- Solo outputs post VCA
- External input for daisy chaining multiple mixers together
Video: https://youtu.be/M21YpDqHGu0
Product Specs
- Item Number: 20264
- Make: ADDAC System
- Model: ADDAC802 VCA Quintet
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator Mixer VCA
- Made In: Portugal
- MPN: ADDAC802
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 12 HP 55 mm deep
- Power*: 150 mA +12V 150 mA -12V 0 mA 5V
* User contributed details
