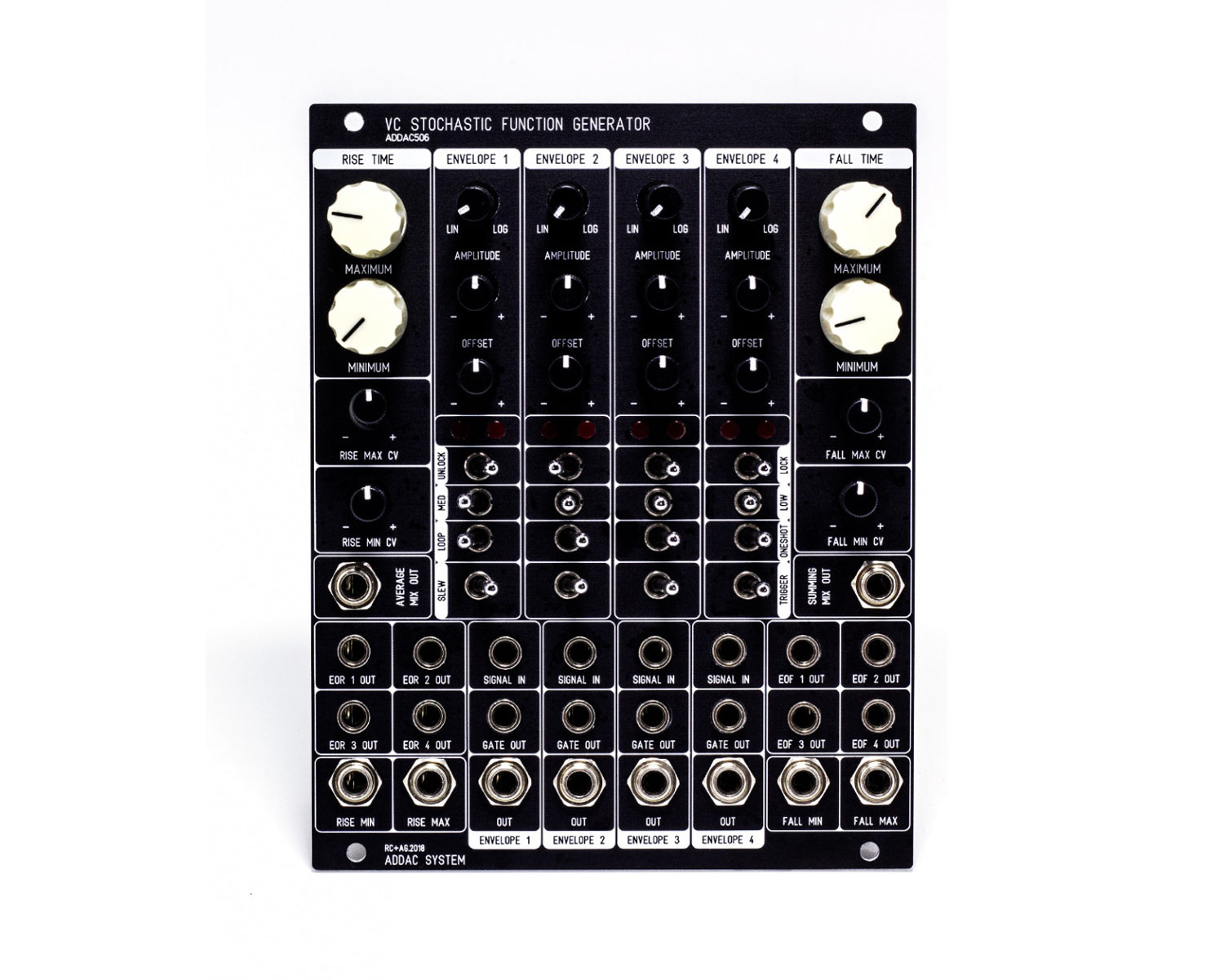

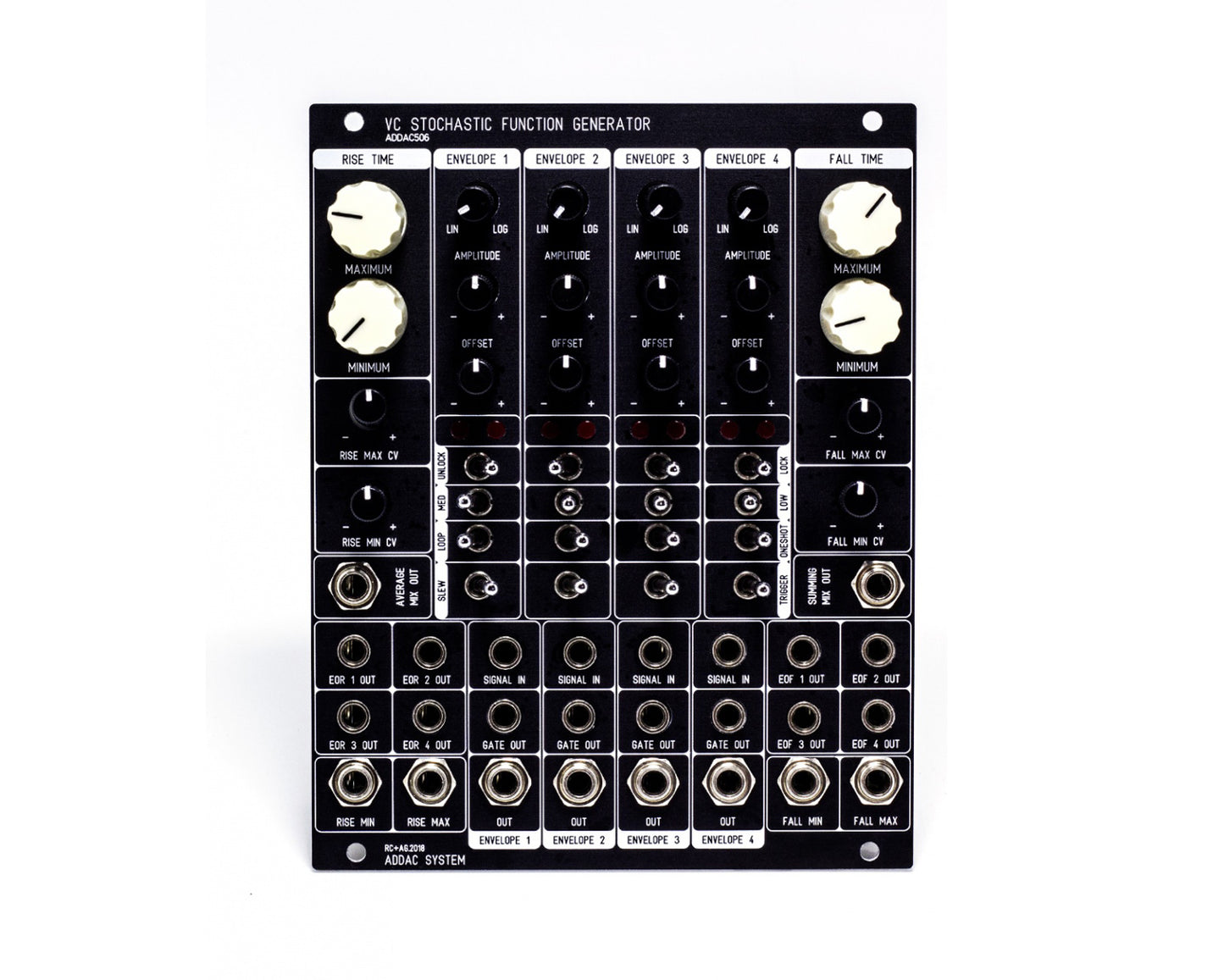

The ADDAC506 Stochastic Function Generator is a 20HP Stochastic Function Generator perfect for complex envelopes. It features four channels of envelope/slew generation and controls for global maximum rise/fall and minimum rise/fall.
Every trigger or start of envelope cycle, the module randomly selects a new rise and fall time based on these controls. If the minimum setting is above the maximum setting, no modulation will occur and the settings will act as a fixed control for the envelope time. The rise/fall min/max controls all have dedicated CV inputs with attenuverters.
- Four-channel complex envelope generator
- Switches for locking parameters, looping, slew/trigger, and range
- End of rise, end of fall, and rise only gate outputs
- Per-envelope triggering and control of curve, amplitude, and offset
- Attenuverters for all CV inputs
- Mix and average output
Video: https://youtu.be/_CdQ-LpoKME
Product Specs
- Item Number: 20252
- Make: ADDAC System
- Model: ADDAC506 Stochastic Envelope Generator
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Envelope Follower Envelope Generator Function Generator Quad Random Slew Limiter
- Made In: Portugal
- MPN: ADDAC506
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 20 HP
- Power*: 200 mA +12V 150 mA -12V 0 mA 5V
* User contributed details
