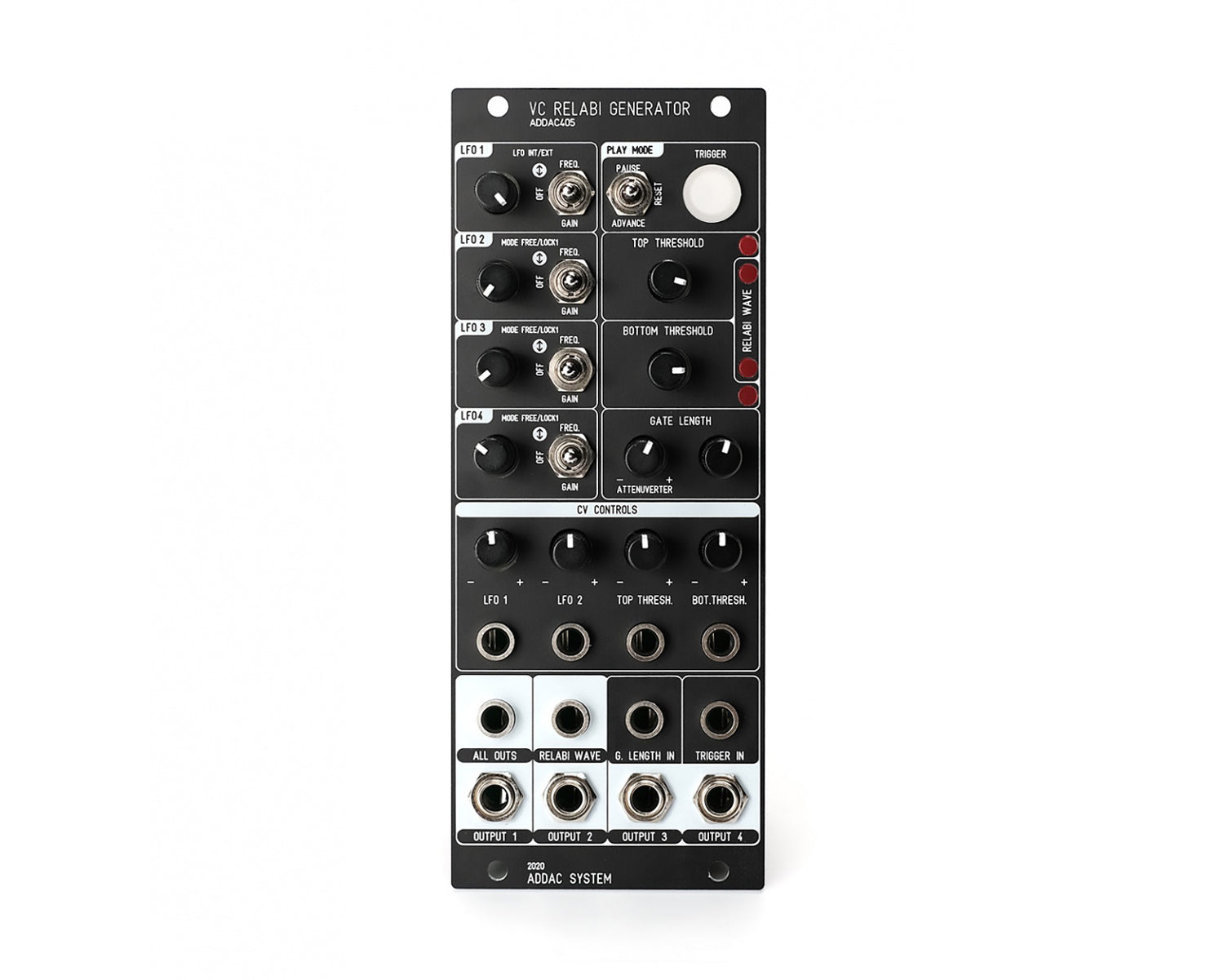

The 405 Relabi Generator is a 10HP complex modulation source that uses a novel approach to signal generation. The 405 functions as a CV and gate/trigger generator. Four sine wave LFOs feature a switch that selects between frequency, gain, and off, muting the LFO.
LFOs 1 and 2 feature CV inputs, and LFOs 2, 3, and 4 feature the ability to sync to LFO 1. These four LFOs are combined to create a Relabi waveform, a +/-5V modulation source.
- Voltage-controlled Relabi generator
- LFOs feature gain and frequency controls
- Four sine wave LFOs combine to create a Relabi wave
- Four gate/trigger outputs defined by the upper and lower bounds of the Relabi waveform
- Three play modes defined by the trigger input
- Relabi waveform is a bipolar modulations source
- CV over LFO 1 and 2
- All trigger output
- Gate length with CV control
Video: https://youtu.be/Ta6MRh4xTh0
Product Specs
- Item Number: 20247
- Make: ADDAC System
- Model: ADDAC405 VC Relabi Generator
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Clock Modulator LFO Quad Comparator
- Made In: Portugal
- MPN: ADDAC405
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 10 HP 40 mm deep
- Power*: 100 mA +12V 40 mA -12V 0 mA 5V
* User contributed details
