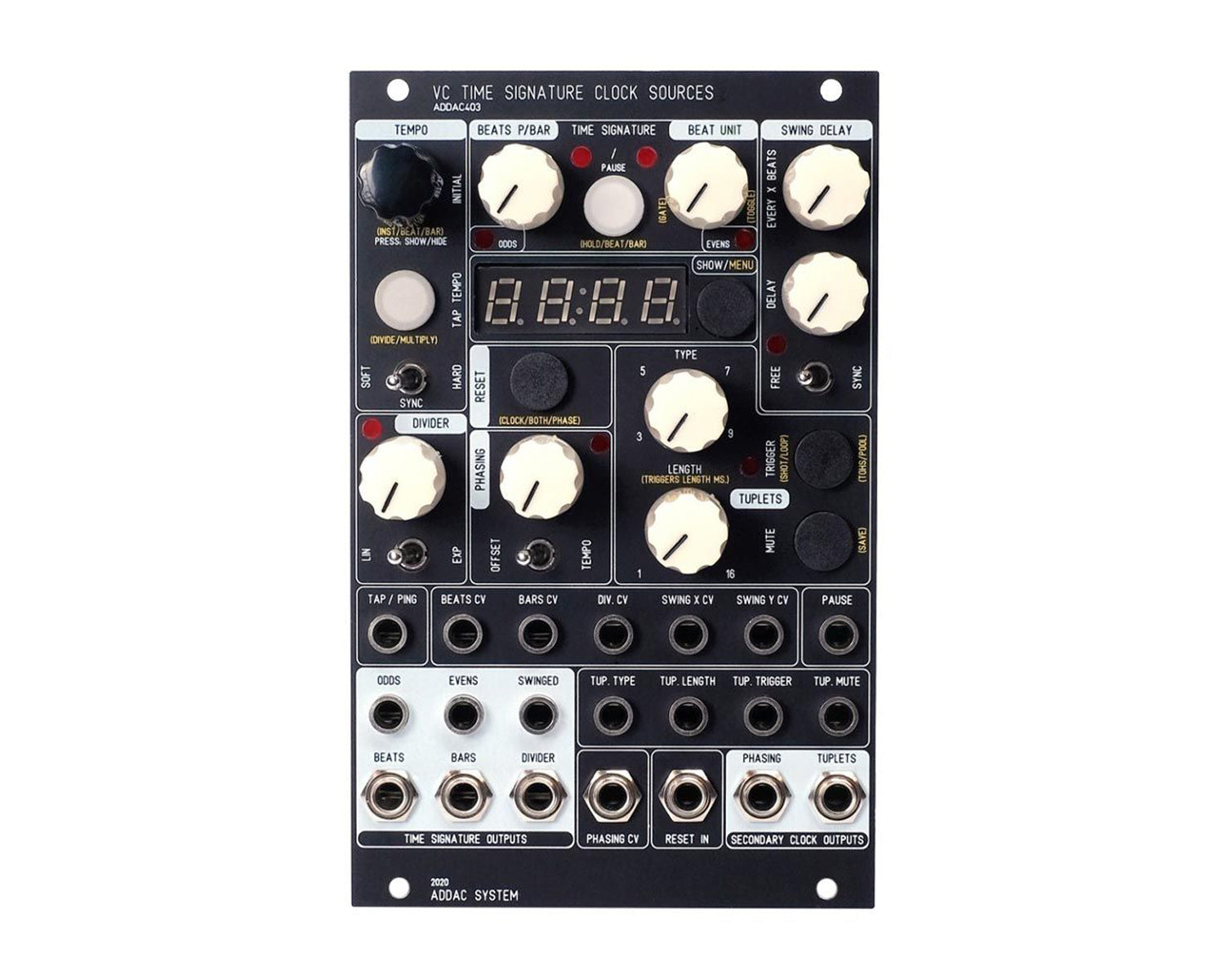

The ADDAC403 VC Time Signature Clock Sources acts as a primary source of synced and syncopated clock signals in your Eurorack system. Its master clock has a BPM range between 0.1 to 250BPM and is incredibly stable. It features manual control, tap tempo, and external sync with soft or hard sync modes. Soft sync sets a new BPM but does not sync to the input clock, while hard sets a new BPM and does sync to the input clock.
- Fully voltage controllable clock source
- Phasing clock that moves in and out of time
- X/Y time signature with beats/bar and bars control
- Divider with linear or exponential scaling
- Tuplets generator with triplets, quintuplets, septuplets, or ninlets with adjustable length
- Swing delay adds skips every X number of beats
- Menu system shows visual representation of parameters with a four-character/seven-segment display
- Pause and reset input
- Hard or soft sync inputs and tap tempo
- All parameters feature CV/trigger inputs except BPM and menu
Video: https://youtu.be/OvLLRU0rChE
Product Specs
- Item Number: 20246
- Make: ADDAC System
- Model: ADDAC403 VC Time Signature Clock Sources
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Clock Generator Clock Modulator Random
- Made In: Portugal
- MPN: ADDAC403
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 16 HP 40 mm deep
- Power*: 140 mA +12V 40 mA -12V ? mA 5V
* User contributed details
