ADDAC Systems ADDAC306 VC Transitions

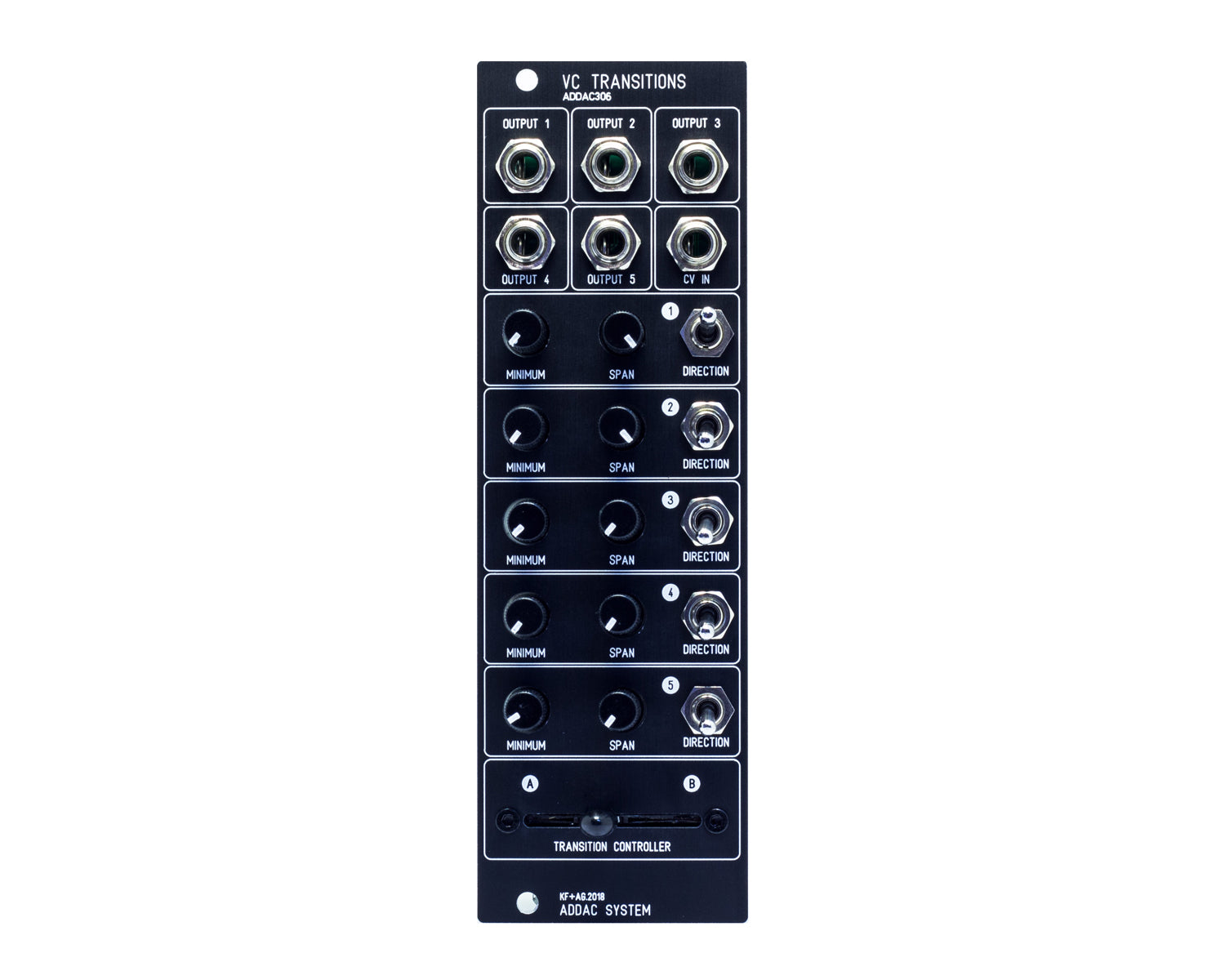

The ADDAC306 VC Transitions is an 8HP, five channel, multi-directional macro CV generator and processor, suited for controlling a whole host of parameters at the same time. Each of the channels features minimum, span, and direction controls. The ADDAC306 also features a CV input and transition controller slider.
Send a sequencer to five different destinations with different voltage levels for each, change up a whole patch with one slider motion, or dial in sweet spots on your favourite filters. This performative voltage generator and processor is a fun and exciting way to add macro control your modular system.

• Five-channel CV generator and processor
• CV input for attenuating
• One slider that controls voltage level for the five outputs
• Direction sets the slider behaviour per channel
• Minimum and span set voltage levels

Product Specs

• Item Number: 20240
• Make: ADDAC System
• Model: ADDAC306 VC Transitions
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Controller Multiple Attenuator Expression CV Modulation
• Made In: Portugal
• MPN: ADDAC306
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 40 mm deep
• Power*: 50 mA +12V 50 mA -12V 0 mA 5V

* User contributed details
