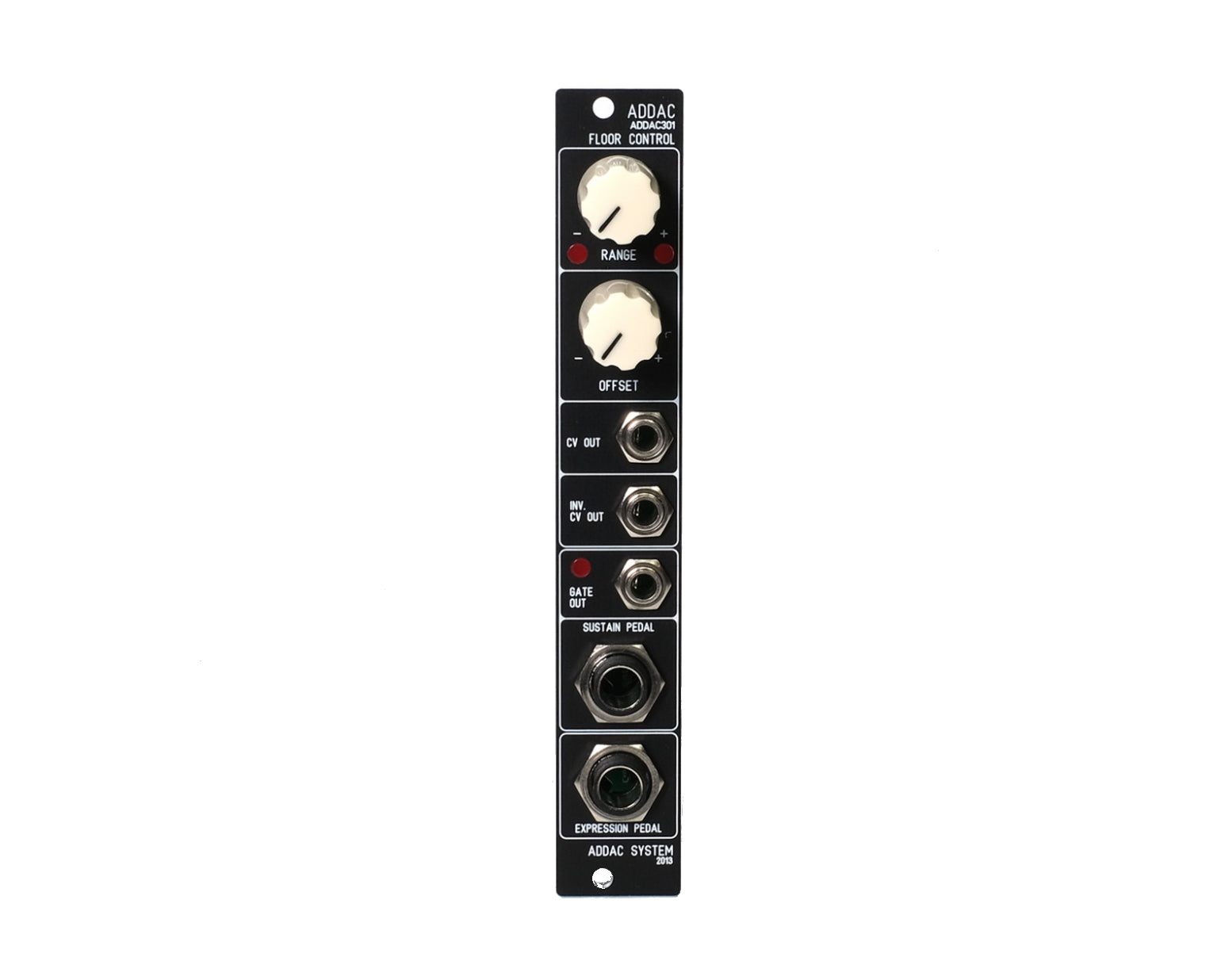

The ADDAC301 Floor Control is a sustain and expression pedal interface designed to free up your hands while using your modular. There are two quarter inch inputs, one for sustain pedal and one for an expression pedal.
The expression pedal has a range control, which controls the total output output voltage range for up to a maximum of +/-10v. There is also an offset control, which transposes the voltage level of the CV output and has a range of +/-5v. The expression pedal section features both a CV and inverted CV output.
The sustain pedal section has a gate output which is activated by pressing down on the sustain pedal.
Note: your expression pedal must have a stereo jack in order to operate correctly.
Features
- Expression and sustain pedal interface
- Expression pedal has range and offset control
- Inverted and non-inverted CV output for expression pedal
- Gate output triggered by sustain pedal
Specs
- Width: 4 HP
- Depth: 4 cm
- Max current: 20mA
- Bus Board Cable: 8 Ć 2 IDC (Doepfer style) connector
Video: https://youtu.be/5icTDrlPrWk
Product Specs
- Item Number: 20233
- Make: ADDAC System
- Model: ADDAC301 Floor Control
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Controller External
- Made In: Portugal
- MPN: ADDAC301
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 4 HP 40 mm deep
- Power*: 20 mA +12V 0 mA -12V 0 mA 5V
