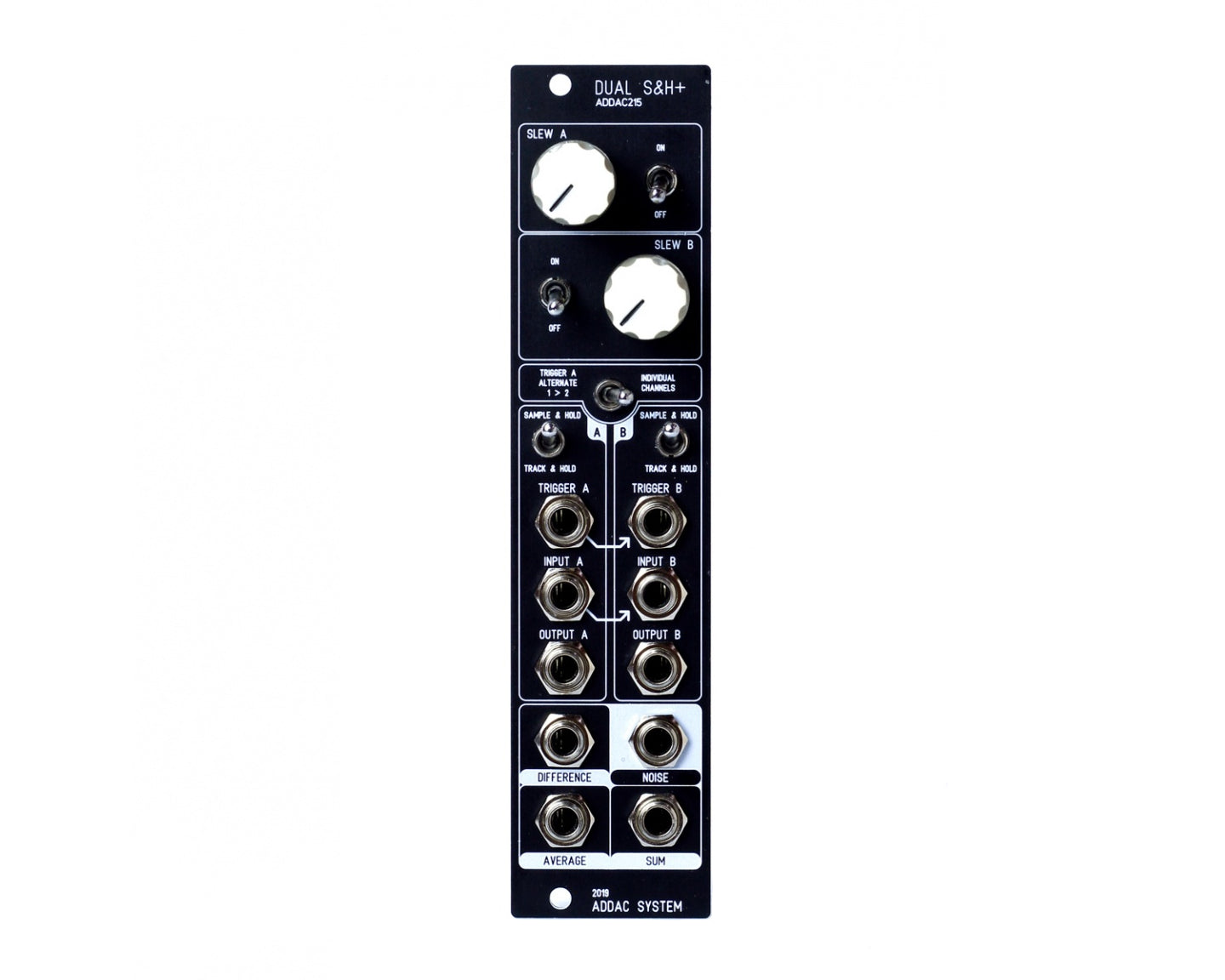

The ADDAC215 Dual S&H+ features a noise source and two high-precision Sample & Hold circuits, maintaining a maximum deviation of 0.01% from the input. This ensures quantised signals remain accurate without de-tuning or voltage drop over time. The Sample & Hold circuits can also operate as Track & Hold, holding the input when the Trigger is ON and allowing it through when OFF. Each section has its own slew processor with attack/decay control and an ON/OFF switch.
The noise signal is normalled to the inputs, generating random CV values if no input jack is connected. A [Trigger A Alternate] switch links both sections, alternating triggers between sections A and B.
The device provides additional outputs for Noise, Difference (A minus B), Average (sum of A and B divided by 2), and Sum (sum of A and B).
Video: https://youtu.be/HGk6f624_UU
Product Specs
- Item Number: 20227
- Make: ADDAC System
- Model: ADDAC215 Dual S&H+
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo Sample and Hold Slew Limiter Random Noise
- Made In: Portugal
- MPN: ADDAC215
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 40 mm deep
- Power*: 50 mA +12V 50 mA -12V ? mA 5V
* User contributed details
