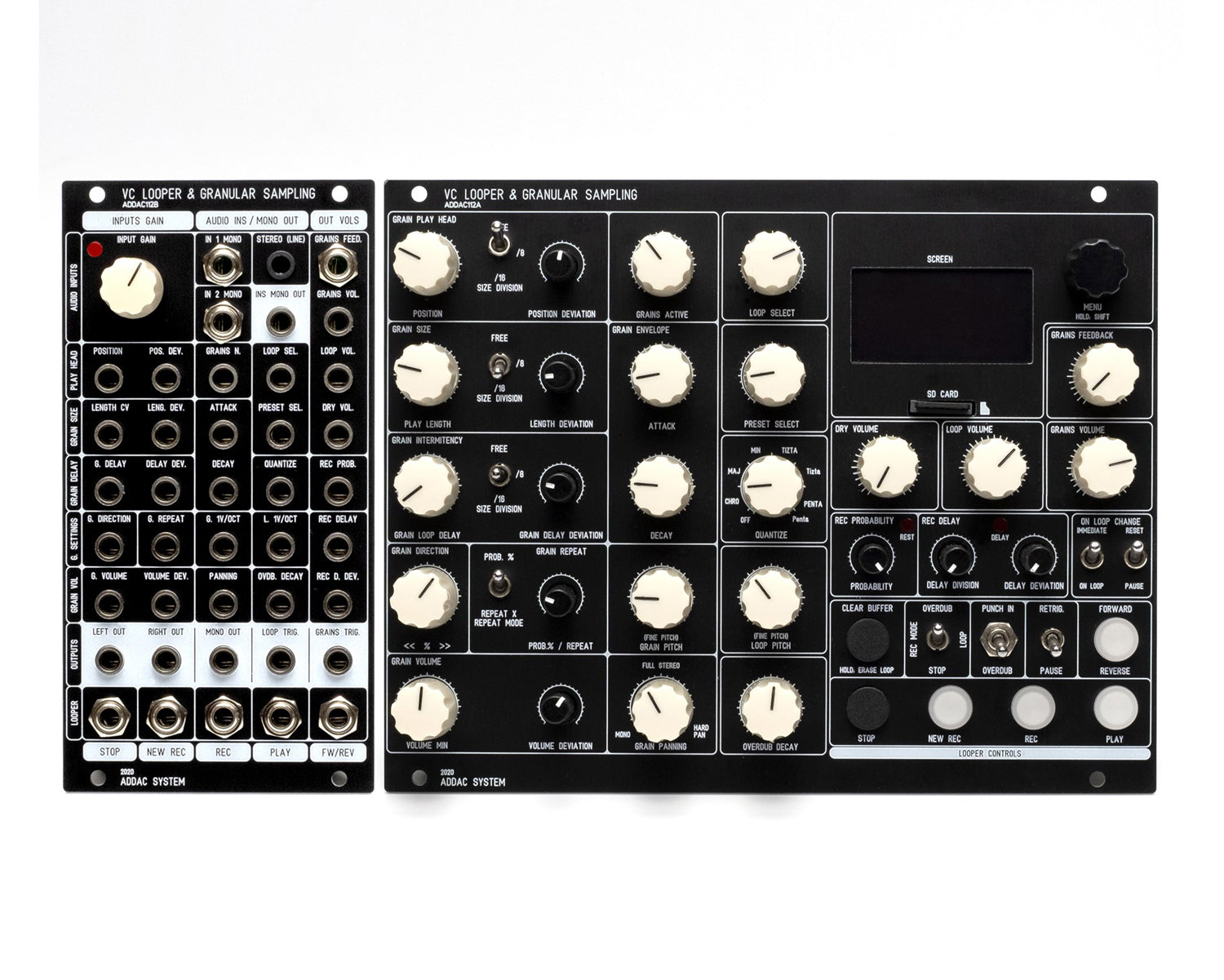

The ADDAC112 VC Looper & Granular Sampling module is a 32 HP Eurorack module and accompanying 13 HP patchbay [ADDAC112B], bring a sea of possibilities to modular synthesists looking to bring granular synthesis and powerful looping features into their soundscapes.
The module consists of three main sections: per & Granular Sampling Module (ADDAC112)
- The Looper Engine - Multiple controls within the looper engine section allows you to record and play loops into a list so that samples can be accessed at any given time.
- The Granular Engine - After a grain is initialised, the Granular Engine reads and calculates all parameters, continuously calculating new settings every times it starts playing.
- The Output Mix - Allows individual control over the dry input, looper volume and grains volume so they can be summed and combined into the stereo outputs.
All of the front panel control knobs have their own CV input and all controls on the left block (ADDAC112) have a corresponding I/O matrix on the right block (ADDAC112B).
Video: https://youtu.be/cR6mmTg3LIU
Product Specs
- Item Number: 20211
- Make: ADDAC System
- Model: ADDAC112
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Digital Sampling
- Made In: Portugal
- MPN: ADDAC112A&B
- Modular Grid: Eurorack ⓘ +
- Dimensions*: 32 HP 45 mm deep
- Power*: 240 mA +12V 70 mA -12V 0 mA 5V
* User contributed details
