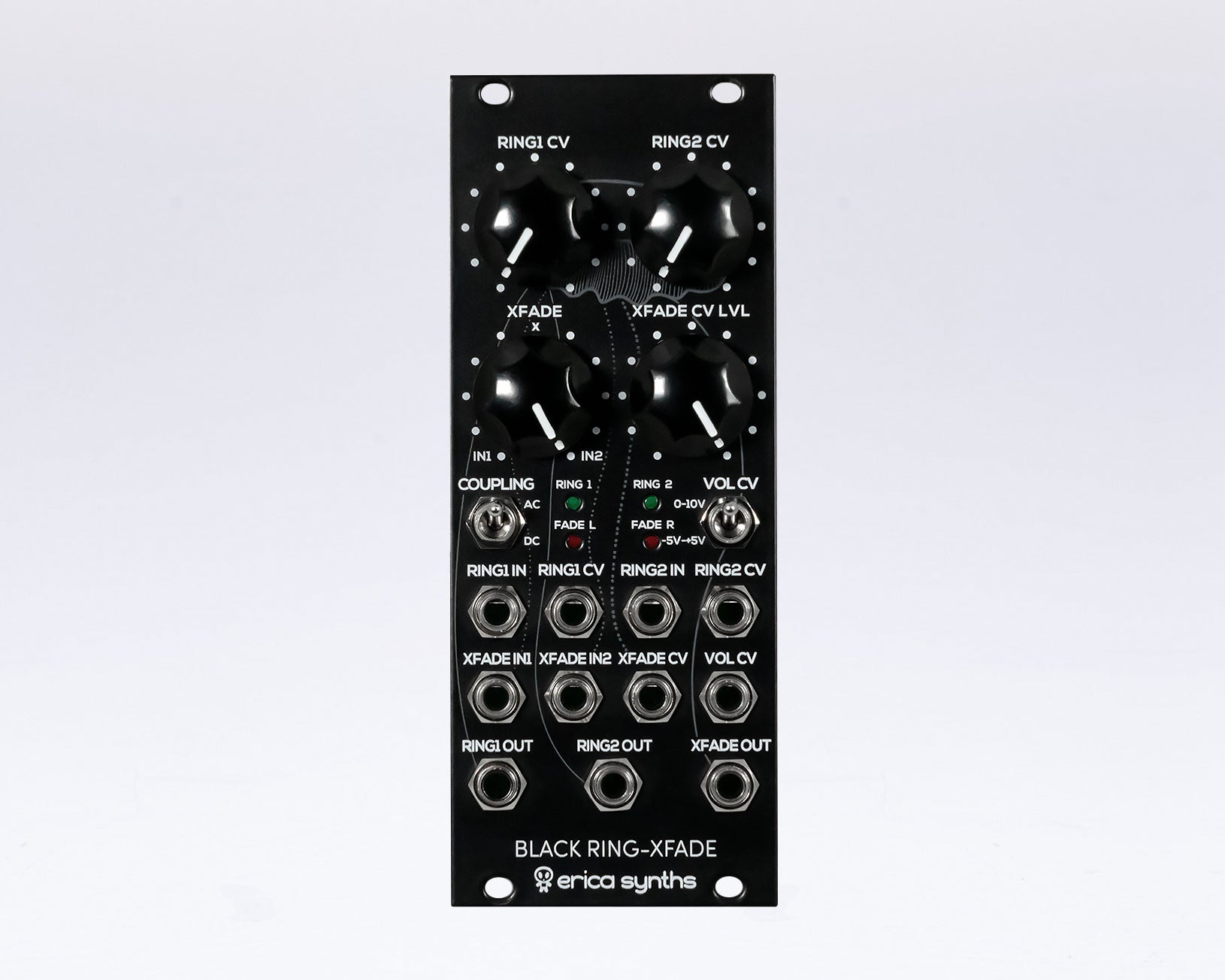

Erica Synths Black Ring-XFade

The Erica Synths Black Ring-Xfade is a versatile module for sound shaping.
It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA.
Unlike conventional ringmodulators that work only with a signal present on both signal and carrier inputs, the Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping.
Add the crossfader between two ringmodulators (or for an external signals) topped up with the VCA, and you have an amplitude modulation powerplant for your modular system.

Features:

• Dual ringmodulaotr/ waveshaper
• Carrier level adjustment
• Voltage controlled crossfader
• Manual and CV control over crossfade
• Selectable AC (audio) or DC (control voltage) coupling
• VCA with selectable bias

Video: https://youtu.be/3xmYBgz_jk8

Product Specs

• Item Number: 19673
• Make: Erica Synths
• Model: Black Ring-XFade
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Panning Ring Modulator VCA Waveshaper
• Made In: Latvia
• MPN: ES-BR-XF
• EAN: 4751030828886
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 35 mm deep
• Power: 38 mA +12V 32 mA -12V 0 mA 5V
