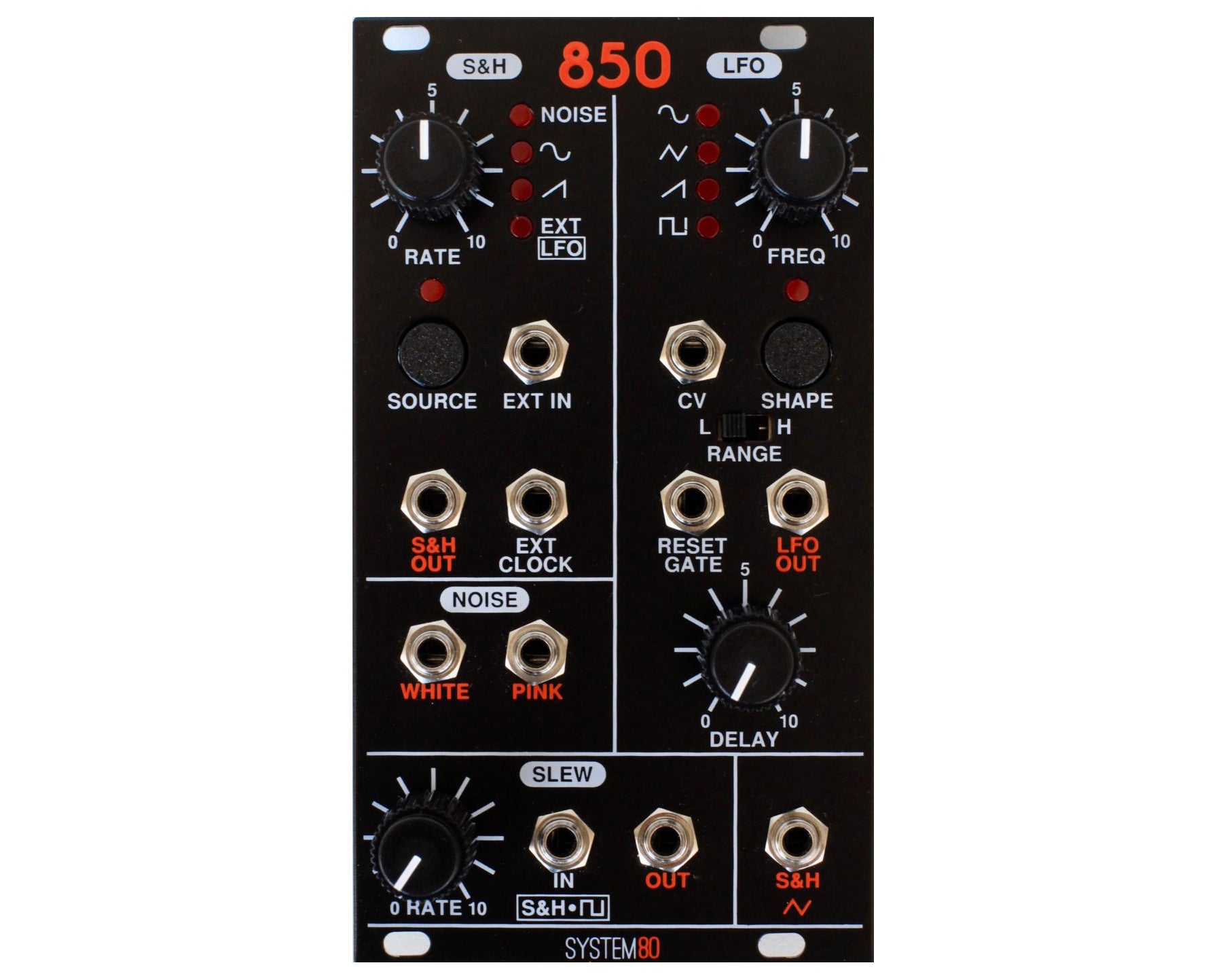

The 850 is a fully analog utility module that combines a voltage controlled LFO, Sample & Hold, Noise source, and a Slew Limiter. The S&H section is normalized to Pink Noise (random) or any of the outputs of the LFO without patching. The output of the S&H circuit is normalized to the Slew Limiter input, allowing slew to be added to the S&H signal. The internal clock driving the S&H doubles as an auxiliary triangle shape LFO. The main voltage controlled LFO features an adjustable delay circuit triggered by an external rising pulse, allowing a gradual increase in LFO amplitude after a reset pulse.
Features
- Voltage controlled LFO with selectable sine, triangle, ramp and square output
- LFO gate/reset input and adjustable rise time after reset
- S&H with internal clock, external clock, and external sample input
- Auxiliary triangle LFO output from S&H clock
- White and Pink noise sources
- Slew Limiter with input normalization to S&H output or S&H clock pulse
PRICE TBC.
Video: https://youtu.be/pdjtY_nhONY
Product Specs
- Item Number: 18953
- Make: System80
- Model: 850
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: LFO Noise Random Sample and Hold Slew Limiter Utility
- Made In: Canada
- MPN: S80-850MK2
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 14 HP 28 mm deep
- Power: 40 mA +12V 20 mA -12V 0 mA 5V
