* This item is not currently in stock, orders will be fulfilled when the item becomes available.

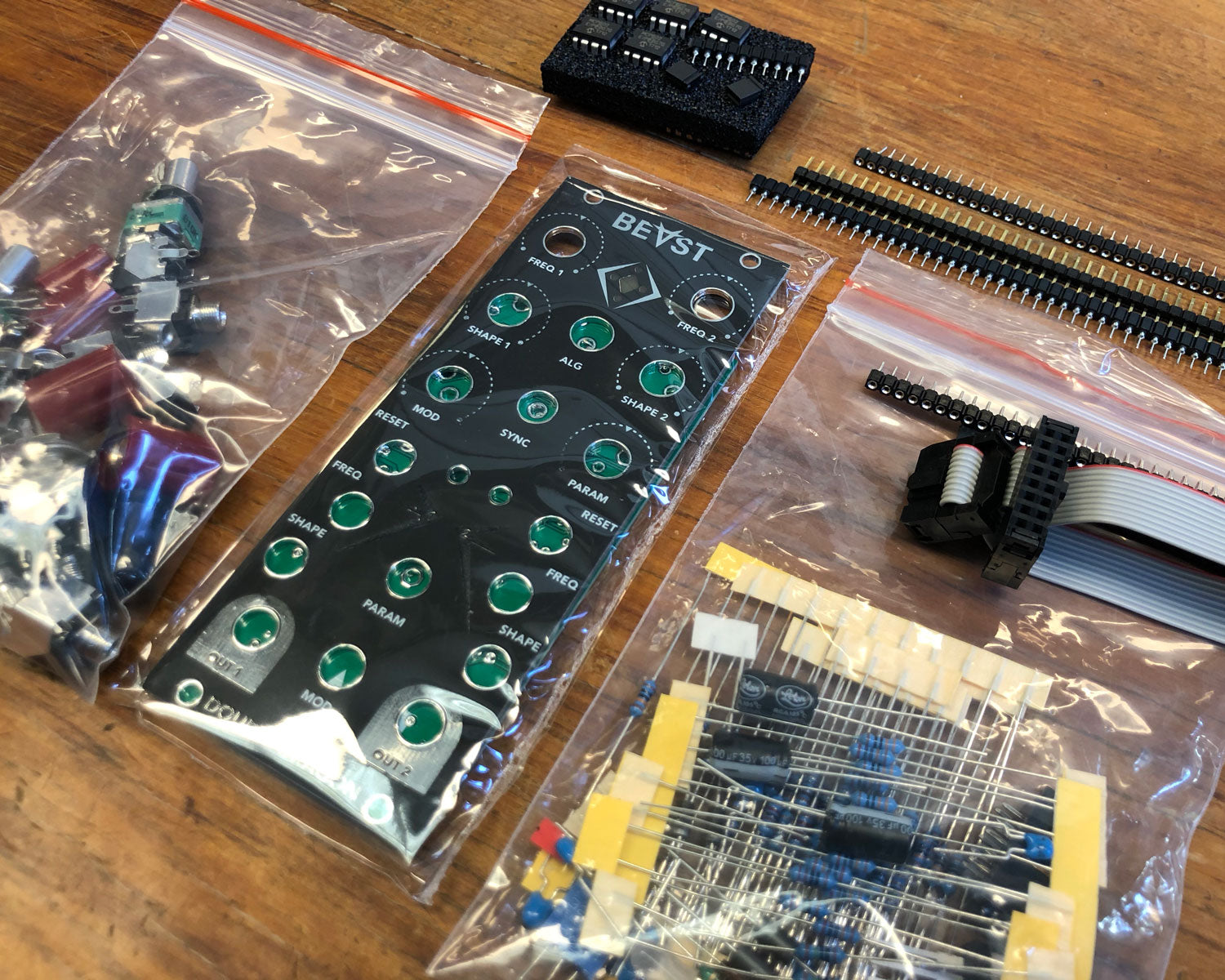

The Beast-Tek Double Dragon is a 10HP dual complex LFO that packs a punch!
The second LFO can be twisted, warped, destroyed and modulated by the first LFO using one of seven different algorithms to produce wild AF modulations.
The amount of algorithm based modulation can be blended from zero all the way to full depth using the MOD control and CV input and each algorithm has a parameter to tweak the modulation, again with full CV control.
The glowing "Dragon Eye" provides visual feedback of the selected mode at all times.
3 different frequency or "speed" ranges accessible by the press of the encoder allow the Double Dragon to go all the way from prehistoric times with a cycle rate of approx. 2.5 hours for one cycle to drone territory and beyond at 1.28 khz.
Configuration jumpers on the back allow each of the two LFOs to be switched from bipolar LFO mode to RAMP mode to generate unipolar ramp signals. From "ramp down" through "triangle" all the way to "ramp up" to control a VCA or modulate using an positive-only envelope.
Two additional jumpers allow the RESET input to be repurposed to 1-Shot mode (one complete Wave or Ramp cycle per trigger input) or hang mode (output is held or "paused" while the input is high) providing maximum flexibility.
Placing LFO 1 into both RAMP and 1-Shot mode in combination with a VCA module allows the Double Dragon to become a drum voice; with LFO 1 providing the envelope and LFO 2 providing the audio signal. Even in RAMP mode, LFO 1 still modulates LFO 2 so the envelope produced by LFO 1 can still modulate LFO.
DD!
Video: https://youtu.be/dbTHip3_Mzw
Product Specs
- Item Number: 15948
- Make: Beast-Tek
- Model: Double Dragon
- Condition: Brand New
- Finish: Black
- Categories: diy ā kit
- Function: Dual/Stereo LFO Noise
- Made In: Australia
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 10 HP 36 mm deep
- Power*: 98 mA +12V 34 mA -12V 0 mA 5V
* User contributed details
