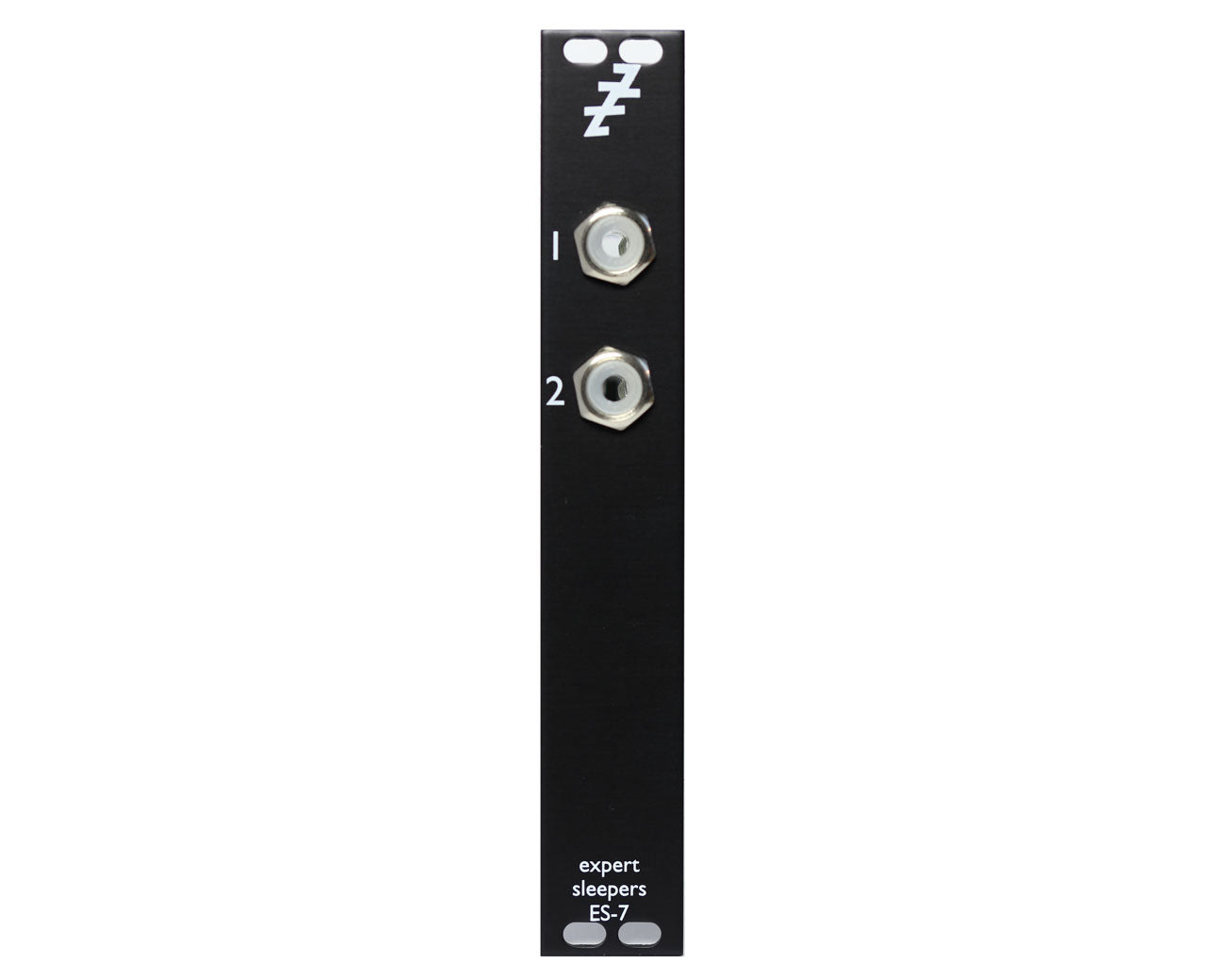

Expert Sleepers ES-7 Input Expander

The Expert Sleepers ES-7 is a 4HP CV input expansion module for their ES-4 and ES-6 synthesizers.
When used with the ES-4, its inputs are located in the ES-4’s S/PDIF output. With the ES-6, the module’s inputs act as the two final channels of the ES-6’s lightpipe out.

Features:

• Digital I/O: connection from ES-4 or ES-6 module
• Analogue inputs: 2x 3.5mm jacks, DC-coupled
• Input voltage range: ±10V
• Input impedance: effectively infinite (FET buffer)
• A/D conversion: 24 bit, 103dB SNR typical

Product Specs

• Item Number: 15929
• Make: Expert Sleepers
• Model: ES-7
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Made In: United Kingdom
• MPN: 160714300207023
