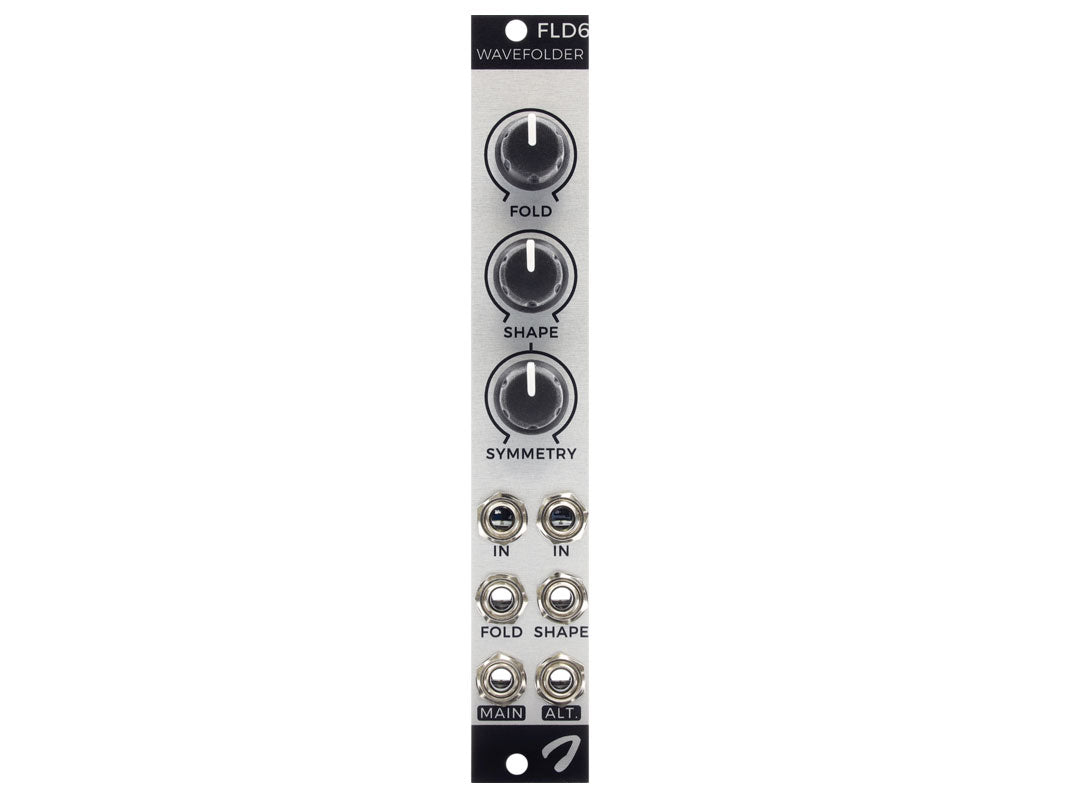

The Joranalogue Fold is a 4HP 6 Multi-Topology Wavefolder designed to fold a signal over itself multiple times generating additional harmonics which result in rich timbres.
For the first time, Fold 6 puts forward a 6-stage hybrid series/parallel topology, yielding a greater sonic palette than ever. Having both main (series) and alternate (parallel) outputs means a single module now gives you access to just about all wavefolding tones imaginable.
Fold 6 also lends itself perfectly for feedback patching, CV folding or frequency multiplication; its modest size belies the sonic capabilities within.
Features:
- Simultaneous series and parallel analogue diode-based six-stage wavefolder
- Symmetry control allows for asymmetric folding
- Soft clipping stage keeps output amplitudes to manageable levels
- Voltage controlled overdrive shaping for added harmonics
- Dual signal inputs increase patching flexibility
- Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics
- Bullet-proof design: polarised power header and MOSFET protection circuit
- Premium mounting hardware: black screws, black nylon washers and matching hex key
- High-quality components and assembly; designed and made in Belgium
Video: https://youtu.be/nxH6lyfpLxk
Product Specs
- Item Number: 15906
- Make: Joranalogue
- Model: Fold 6
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Waveshaper
- Made In: Belgium
- MPN: JORF6
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 4 HP 35 mm deep
- Power: 40 mA +12V 40 mA -12V 0 mA 5V
