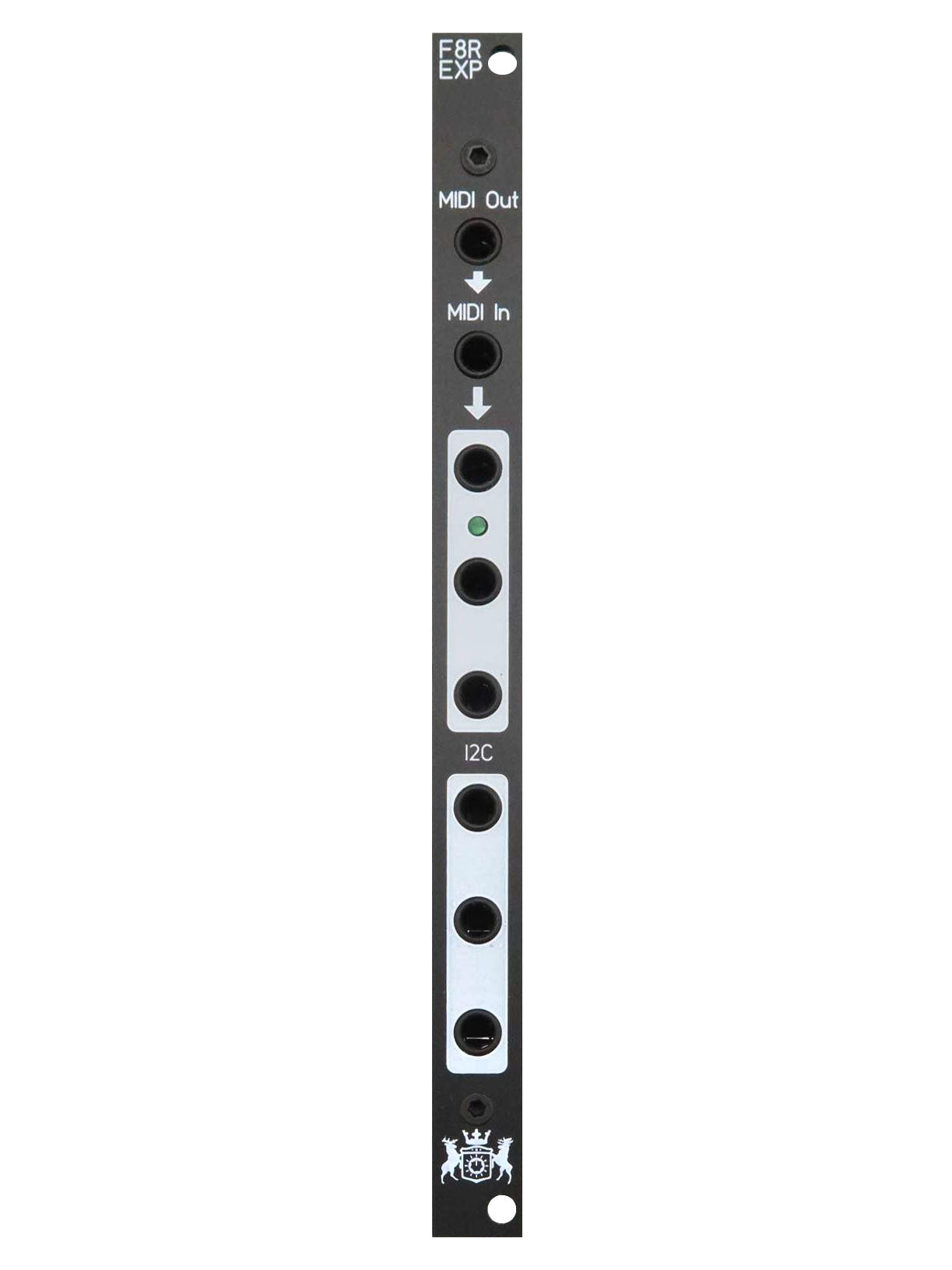

F8R Output Expander adds 3 TRS midi outputs (multiples of the MIDI out of the 8m), 3 fully buffered I2C TRS headers, and an optional 1x3 TRS Through.
I2C:
The 3 I2C outputs are buffered and allow for long distance connections to other devices. They are all multiples of the I2C output of the 8m.
MIDI:
MIDI Out: Single Output from 8m. If nothing is plugged into this jack, the MIDI data is forwarded to the 1x3 MIDI through.
MIDI IN: MIDI input to the 1x3 MIDI through, connecting an input will disconnect the MIDI out from the 8m. This input can accept TRS MIDI A or B cables
Multiple MIDI Outs: Fully buffered midi outs
Product Specs
- Item Number: 15111
- Make: Michigan Synth Works
- Model: F8R Expander - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Controller Expander MIDI Multiple
- Made In: United States
- MPN: 8m Fader Bank Expander
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 2 HP 22 mm deep
- Power*: Module does not draw current
* User contributed details
