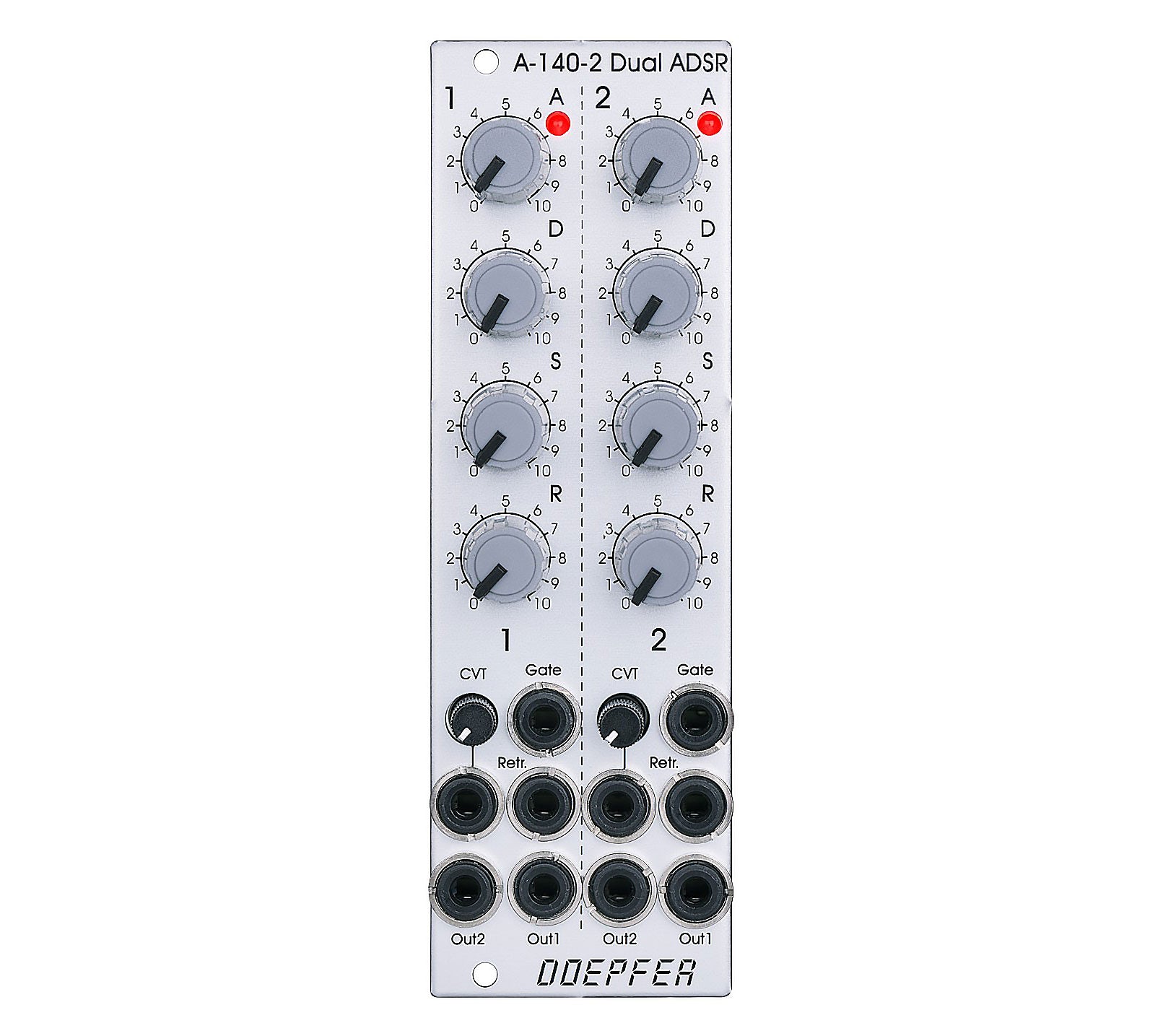

The Doepfer A-140-2 features dual voltage-controlled ADSR envelopes in a 8HP. Enormously configurable, it features jumpers to select if CV inputs control Decay only, Decay and Release, or Attack, Decay, and Release simultaneously. The A-140-2 also features two envelope outputs per channel, one of which can be switched between normal and inverse.
- Width: 8 TE / 8 HP / 40.3 mm
- Depth: 40 mm (measured from the rear side of the front panel / measured from the rear side of the front panel)
- Current: +50 mA (+ 12V) / -40 mA (-12V)
Product Specs
- Item Number: 14654
- Make: Doepfer
- Model: A-140-2 Dual Micro ADSR
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Dual/Stereo Envelope Generator
- Made In: Germany
- MPN: A-140-2
- EAN: 4250711114022
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 40 mm deep
- Power*: 50 mA +12V 40 mA -12V 0 mA 5V
* User contributed details
