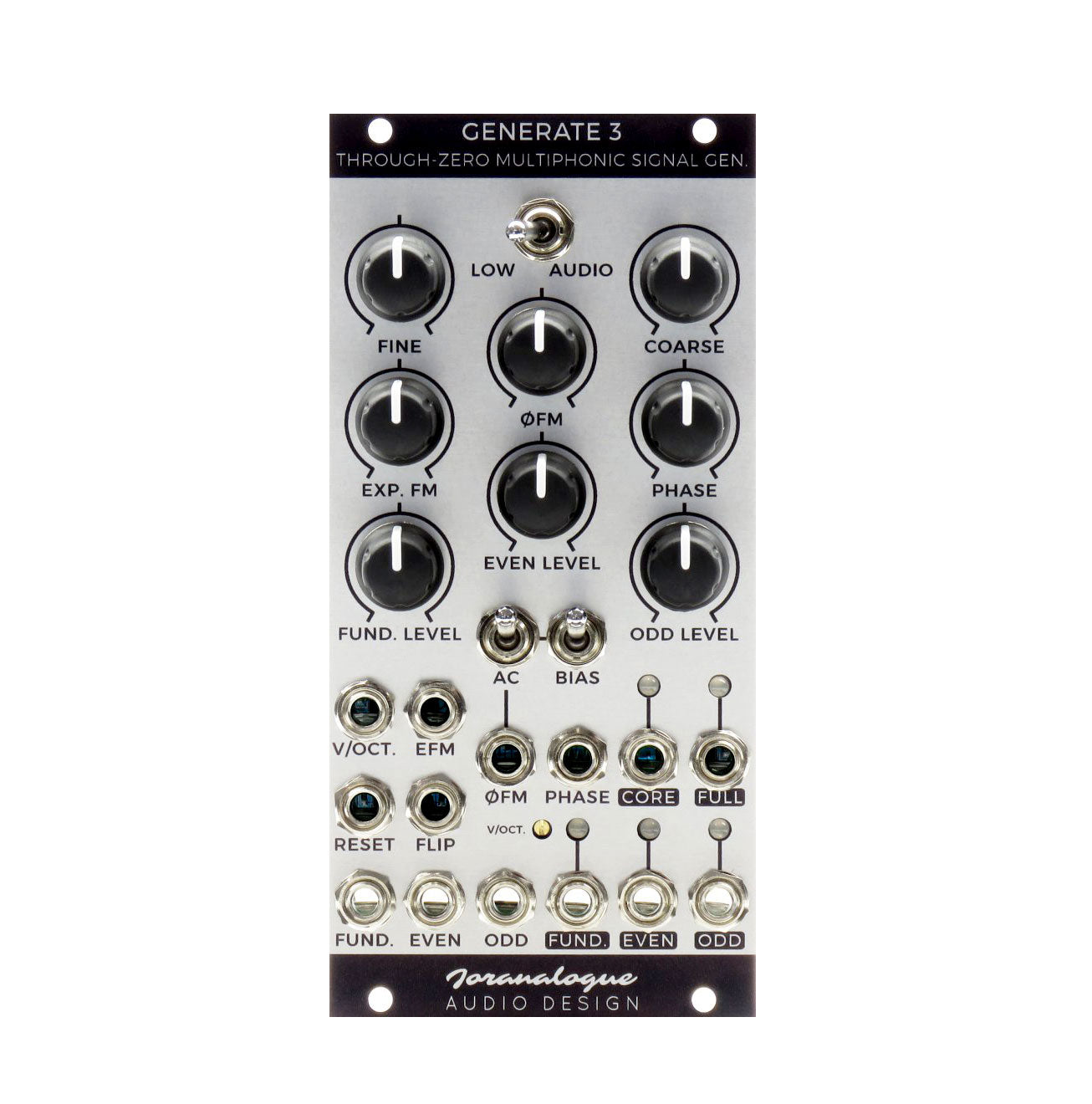

Any signal can be expressed in terms of a few parameters: frequency, phase, amplitude and timbre. It is through modulation of these aspects that synthesists create electronic sound. With Generate 3, it is now possible to create a signal and control all its parameters by through-zero modulation within a single 12 HP wide module.
Everything starts with the exceptionally precise triangle-core voltage controlled oscillator (VCO) at the module’s heart. Through-zero linear frequency modulation (FM) enables rich yet pitch-stable FM sounds, by allowing the oscillator to run backwards into ‘negative frequencies’.
The resultant triangle wave is then processed by the through-zero phase modulator, providing a total phase shift range of 900°. Phase modulation offers an interesting alternative for FM, as it enables deep FM-type tones without actually changing the oscillation frequency.
Video: https://youtu.be/AzQjCIIowSc
Product Specs
- Item Number: 13815
- Make: Joranalogue
- Model: Generate 3
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Oscillator
- Made In: Belgium
- MPN: JORG3
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 12 HP 30 mm deep
- Power: 130 mA +12V 115 mA -12V 0 mA 5V
