* This item is not currently in stock, orders will be fulfilled when the item becomes available. No ETA

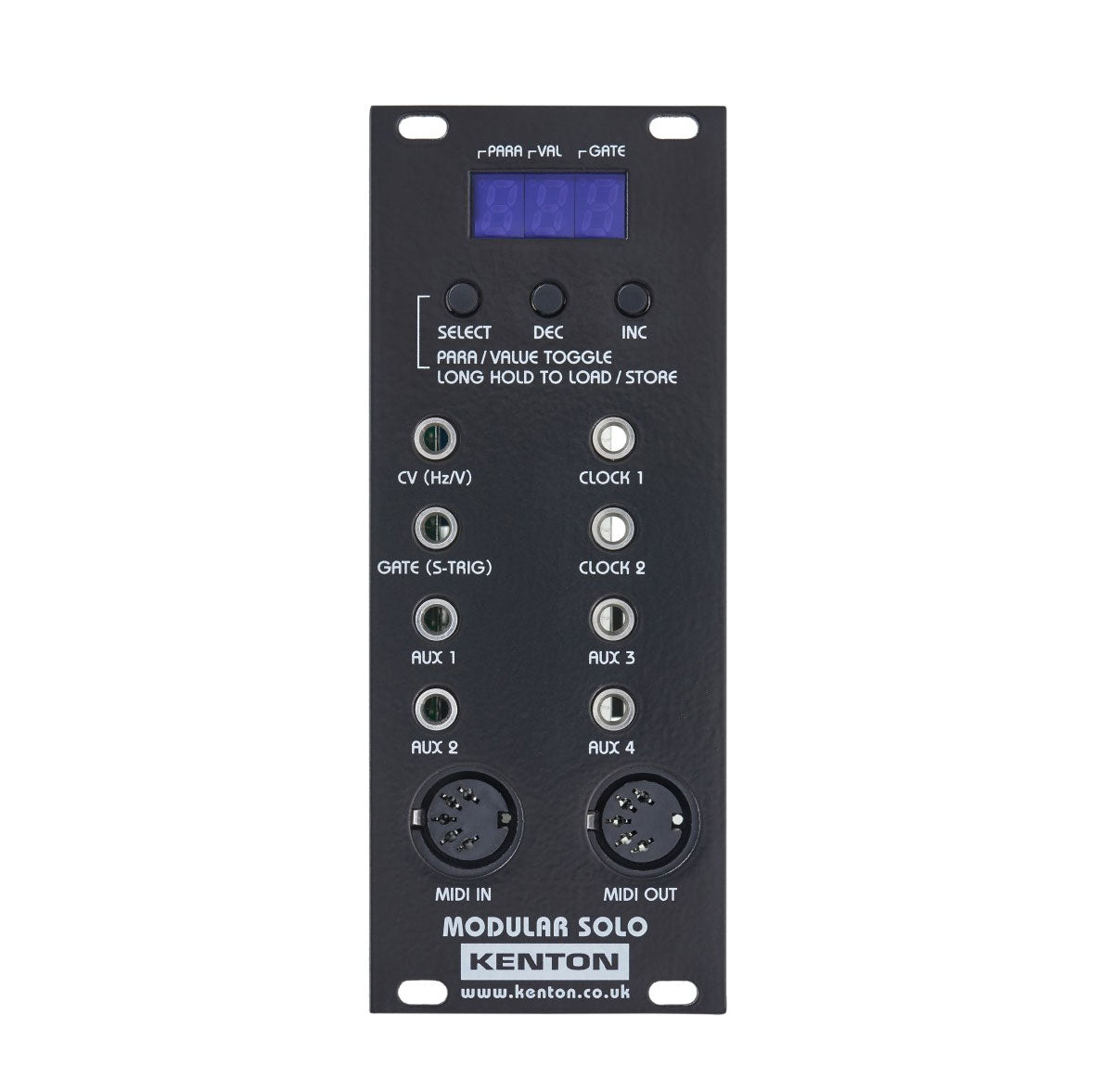

The Modular Solo from Kenton is a high quality and quick 10hp MIDI/CV converter with a lot of functions in a 10HP Eurorack module. Similar to the Kenton ProSolo but with additional functions like a clock divider and more flexible AUX outputs.
- 1 V / octave, 1,2 V / octave and Hz / V modes
- CV, gate, aux and clock outputs
- A 16 bit D/A converter guarantees rock-steady pitches
- CV and gate signals can be fed to the Eurorack system bus
- MIDI-DIN input and output respectively thru channel
- Selectable MIDI channel
- The MIDI output can be used for DIN Sync 24 equipment
- Fine tune and scale parameters editable via software
- Transpose option (+/- 12 semitones)
- Editable pitch bend range
- Gate output can emit V-trig or S-trig signals
- Multiple and single trigger modes
- Editable note priority (low / high / last)
- Portamento with fixed rate and fixed time modes
- Auto Portamento mode
- Four programmable aux outputs
- Two independent clock outputs (5 V or 10 V)
- LFO with nine waveforms and routing options (Destinations: pitch, aux output)
- Separate controllers for LFO to CV and LFO to aux
- LFO offers sync and reset options
- Clock outputs can work with 1 to 12, 24 or 48 PPQ
- Setups are stored in non-volatile memory
- MIDI monitor mode
-
All parameters are controllable in real-time via SysEx
-
Dimensions: 128mm high x 50mm wide x 80mm deep
- Power consumption: +ve supply 85mA max / -ve supply 3mA
Product Specs
- Item Number: 12970
- Make: Kenton
- Model: Modular Solo MIDI-CV/Gate Interface
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: MIDI
- Made In: United Kingdom
- MPN: KEN-MSOL
- Modular Grid: Eurorack ⓘ +
- Dimensions*: 10 HP 80 mm deep
- Power*: 85 mA +12V 3 mA -12V 0 mA 5V
* User contributed details
