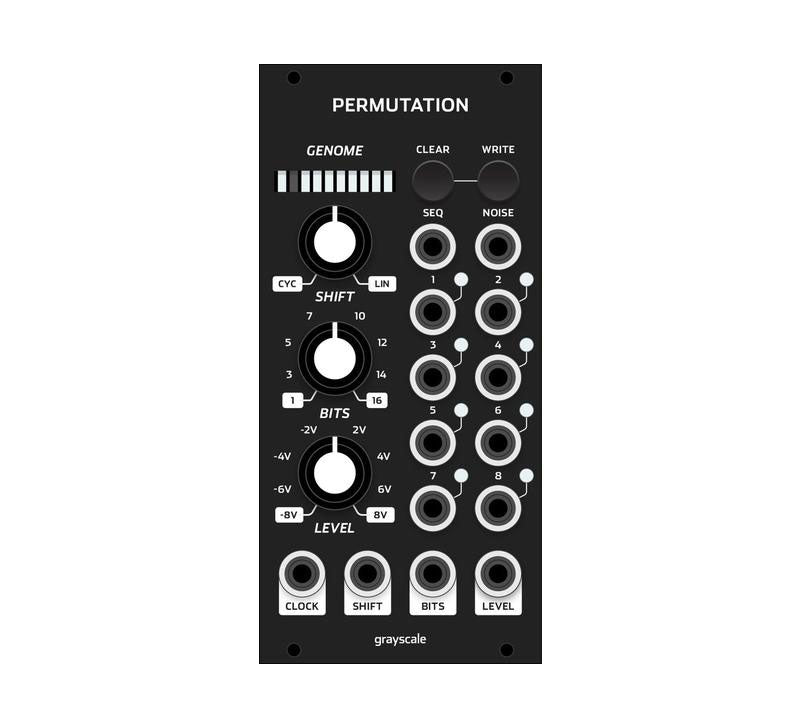

Permutation is a set of random sequencers that use a digital shift register to generate unpredictable CV and gate patterns that can be locked into repeating loops. The concept is based on the Turing Machine, an open source module designed by Tom Whitwell.
Permutation retains the core functionality of the Turing Machine while adding new features such as dedicated outputs for each bit of the shift register, CV inputs for all parameters, and an internal bipolar VCA. Locked sequences are also saved across power cycles.
12HP omits 8 gate outputs, Pause/clock switches, Clear/write CV inputs, Clock output, and inverted sequence CV output.
Video: https://youtu.be/L83QWVrYkZk
Product Specs
- Item Number: 12170
- Make: Grayscale
- Model: Permutation 12HP Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Random Sequencer
- Made In: United States
- MPN: GS_Permutation12_Black
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 12 HP 40 mm deep
- Power: 48 mA +12V 14 mA -12V 0 mA 5V
