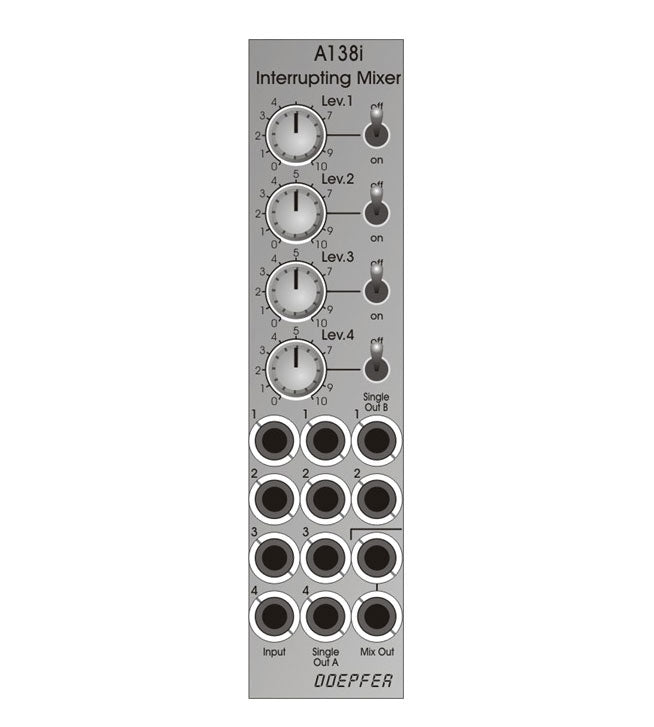

The A-138i module is a four-channel mixer equipped as a special feature with a mute switch for each channel. In addition, the module also has two types of single outputs and a dual output mix output.
All inputs and outputs are DC coupled. Therefore, the module is suitable both for mixing audio signals and control voltages. For each of the four inputs, an attenuator is available in addition to the mute switch. The attenuated and possibly switched signal of the relevant channel is available at the individual outputs.
Single Output A : when connecting the single outputs "A" (Single Out A) with a patch cable, the corresponding signal is removed from the sum signal.
Single Output B : when connecting the single outputs "B" (Single Out B) with a patch cable, the relevant signal is not removed from the sum signal. This type of output is only available for channels 1 and 2.
Brand new with warranty.
Product Specs
- Item Number: 11830
- Make: Doepfer
- Model: A-138i Interrupting Mixer Slim Line
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Mixer Switch Quad
- Made In: Germany
- MPN: A-138i
- EAN: 4250711113742
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 6 HP 35 mm deep
- Power*: 10 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
