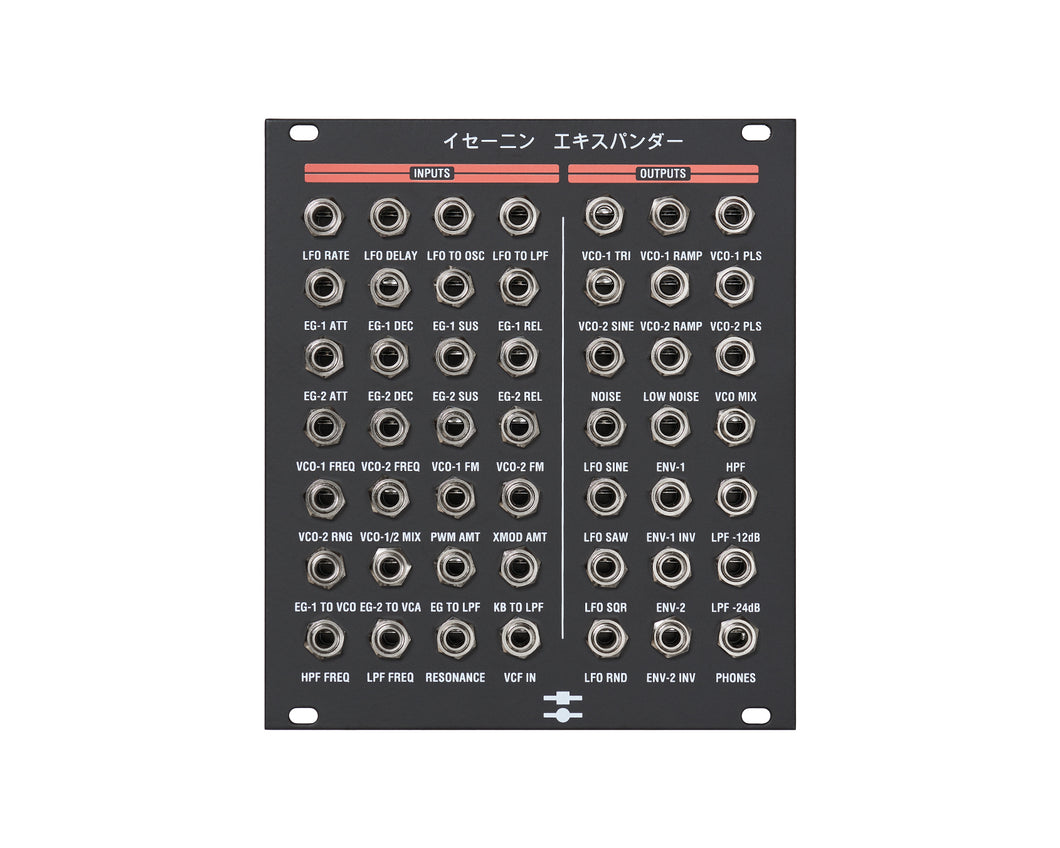

The Black Corporation ISE-NIN Voice Breakout module expands the Jupiter-8 Synth voice and 49 inputs and outputs.
The expander is quite simply a modulation Eldorado: with 28 inputs and 21 outputs for CV, Gate and audio, the Synthvoice achieves full connectivity and can really let off steam. On the input side, there are CV inputs for each fader of the main module.
This allows, among other things, the modulation of each individual envelope phase, far more complex FM sounds and even partial automation with a larger MIDI to CV/Gate interface can be implemented. On the output side, the individual waveforms of the oscillators and the LFO, the two envelopes, noise, VCO mix and three filter taps are provided. There is also a headphone output, so you can listen to the ISE-NIN double pack without having to bother with the rest of the Eurorack or the setup.
Features
- Comprehensive CV control over all Voice module parameters
- Individual outputs for all oscillator waveforms
- Separate FM inputs per oscillator
- Full ADSR stage control for both envelopes
- Multiple filter outputs (HP/LP)
- Individual LFO waveform outputs
- Noise and low noise outputs
- Dedicated headphone output
- Direct access to cross-modulation parameters
- All inputs and outputs at modular level
- Compatible with ISE-NIN Voice module
Video: https://youtu.be/E6DZ5Cu8xfc
Product Specs
- Item Number: 39748
- Make: Black Corporation
- Model: イセーニン Ise-Nin Voice Breakout
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander
- Made In: Japan
- MPN: BC-ISNVB
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 22 HP
- Power*: Module does not draw current
* User contributed details
