Apollo View Vamp 8HP Multi-Mode LP/BP/HP Sallen-Key Filter with Tube Saturation & Distortion

Apollo View Vamp 8HP Multi-Mode LP/BP/HP Sallen-Key Filter with Tube Saturation & Distortion

Product type
NEW
Regular price
$549.00
Sale price
$549.00
Out of stock
Unit price
per
GST inclusive Shipping calculated at checkout.

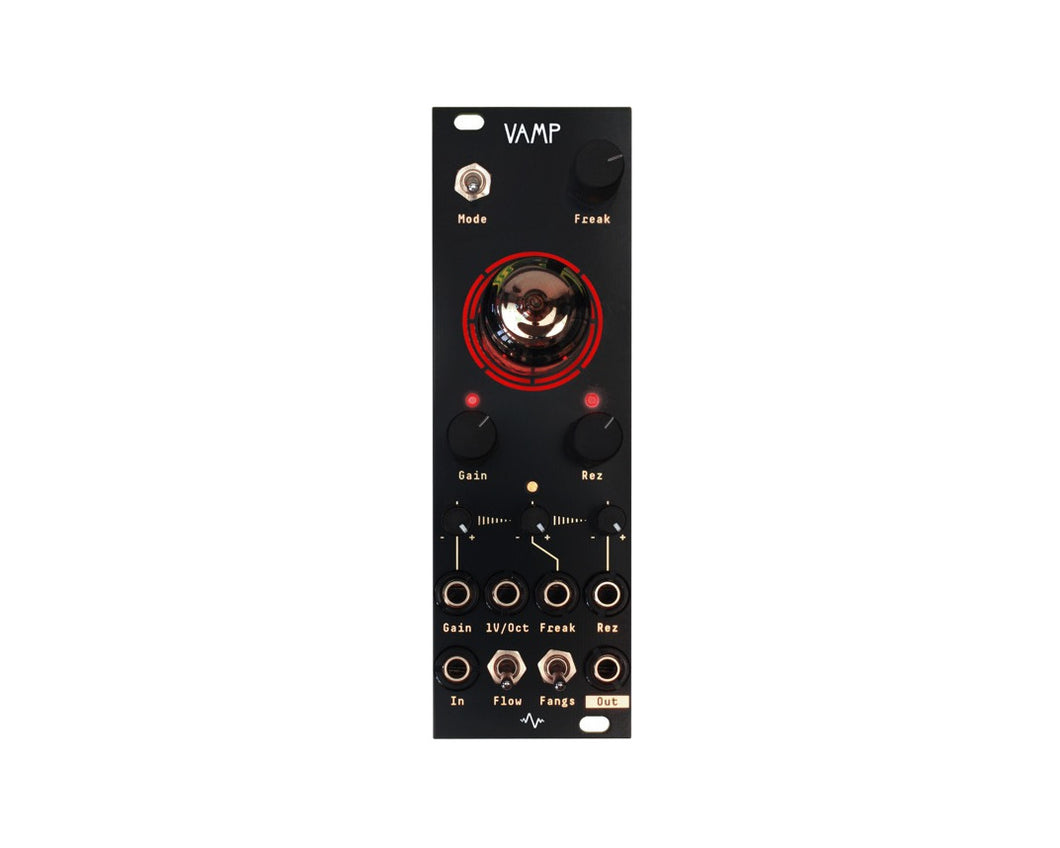

VAMP is a multi-mode analogue filter that gives you low-pass, band-pass, and high-pass responses in 8HP.

At its heart lies a classic Sallen-Key topology supercharged with real vacuum tube (12AU7) saturation and multiple stages of clipping, letting you move seamlessly from smooth, hi-fi filtering to snarling, overdriven character.

One half of the tube is used to saturate the input, while the other half powers the resonance feedback path with an MS-20-style clipping stage. Combined with assignable VCA placement (pre- or post-filter) and a dedicated output clipping circuit, VAMP delivers everything from subtle warmth to ferocious harmonic destruction.

Features

  • Three filter modes: low-pass, band-pass, and high-pass
  • Classic Sallen-Key topology with tube saturation and clipping
  • 12AU7 vacuum tube: one half for input drive, one half for resonance distortion
  • MS-20-style resonance path clipping for aggressive tones
  • Integrated VCA switchable pre- or post-filter via Flow toggle
  • Three-way output clipping: off / soft clipping / hard clipping
  • 1V/Oct tracking: use VAMP as a VCO in self-oscillation
  • Extensive CV control: VCA gain, frequency modulation (FM), and resonance (Q)
  • Self-oscillation for screaming acid tones

Tech Specs

  • Width: 8HP
  • Depth: 30mm
  • Tube Height from panel: 40mm
  • Power: +12V 230mA / -12V 70mA
  • Reverse polarity protected

Video: https://youtu.be/ABKPVh4tM34

Product Specs

* User contributed details
