Befaco Hexpander DiY Kit

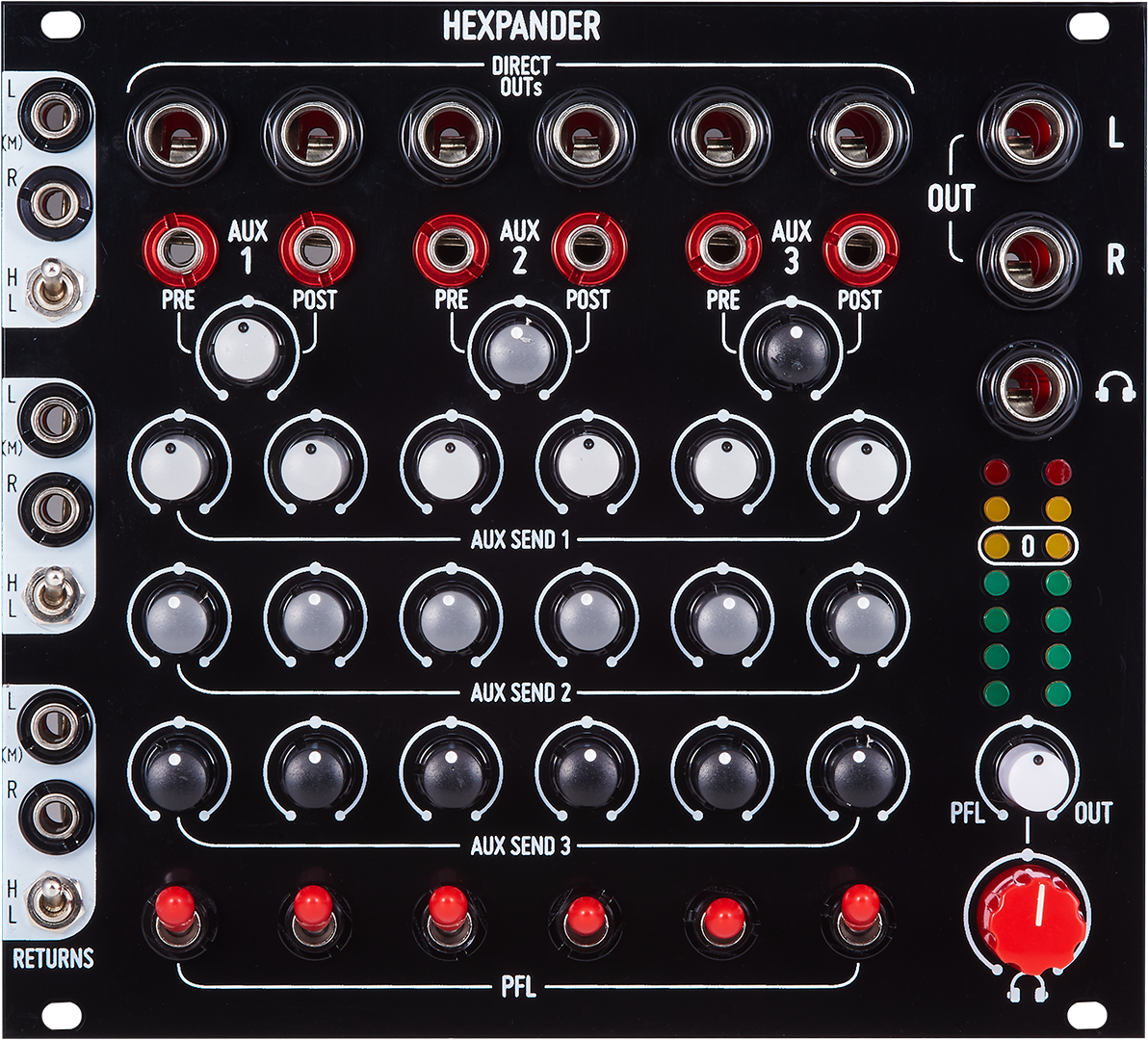

DIY kit version of The Befaco Hexpander Eurorack module.

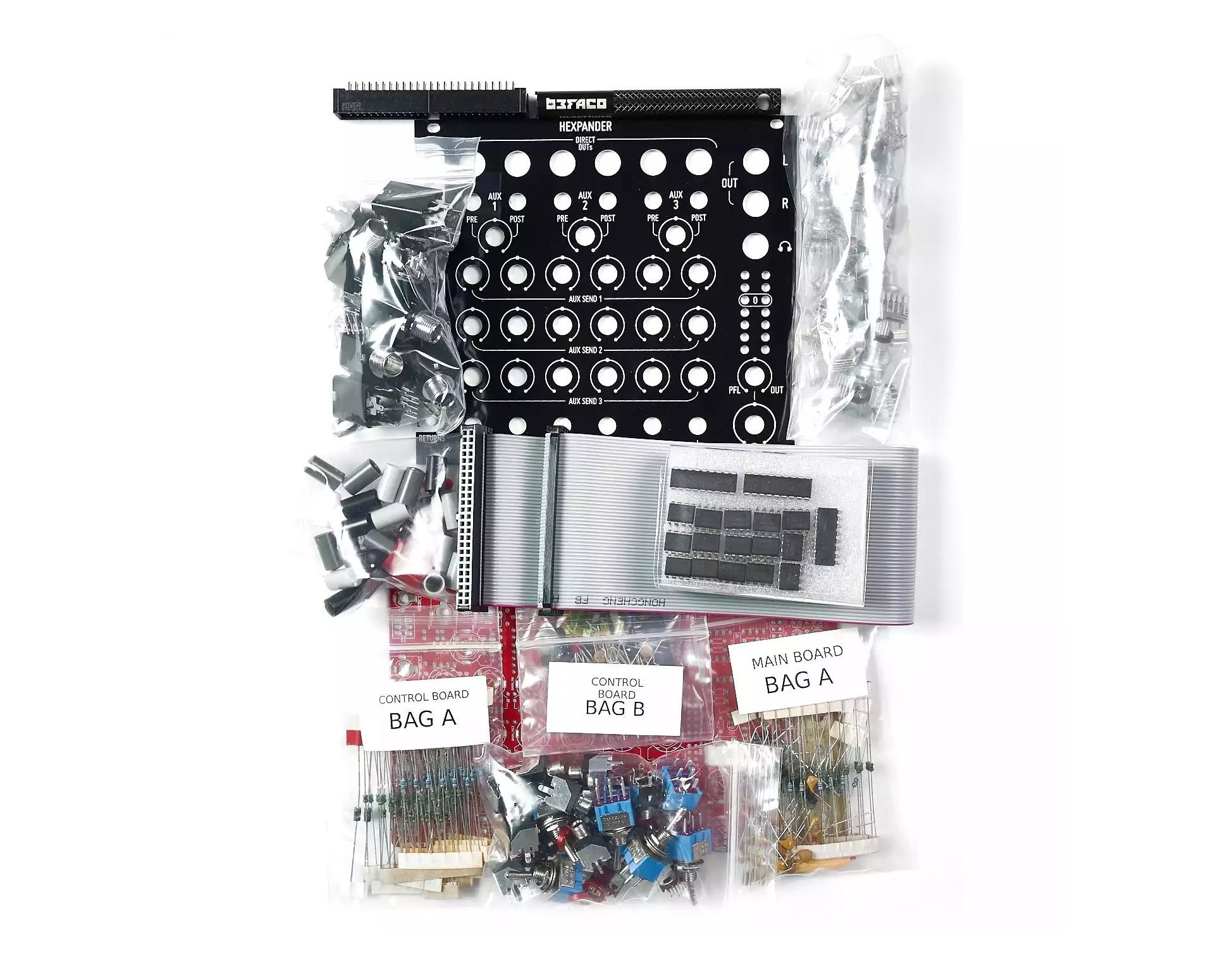

This kit includes all the necessary parts to make a completed module including power cable, Hexmix VCA connector cable and four Knurlies M3 rack screws.

Hexpander adds great functionality to Hexmix module. Featuring Three aux send with stereo returns, individual outputs for each channel, complete PFL system and balanced output.
Designed to be placed on top of Hexmix. Expanding Eurorack concept to 6U, allows every channel to be aligned as in traditional tabletop mixers.

FEATURES

• Three auxiliar sends with stereo returns and individual controls per channel.
• Pre and Post Fader/EQ outputs.
• Selectable Line/Modular level at return inputs.
• Monitor section with PFL per channel.
• Individual PostEq output per channel.
• Master section with Headphones amp and balanced line outputs.

Video: https://youtu.be/D6F_VRGpqvc

Product Specs

• Item Number: 27481
• Make: Befaco
• Model: Hexpander DiY Kit
• Condition: Brand New
• Finish: Black
• Categories: diy ⇒ kit
• Function: Expander External Mixer Utility Dual/Stereo
• Made In: Spain
• MPN: DIY018
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 28 HP 27 mm deep
• Power*: 137 mA +12V 64 mA -12V 0 mA 5V

* User contributed details
