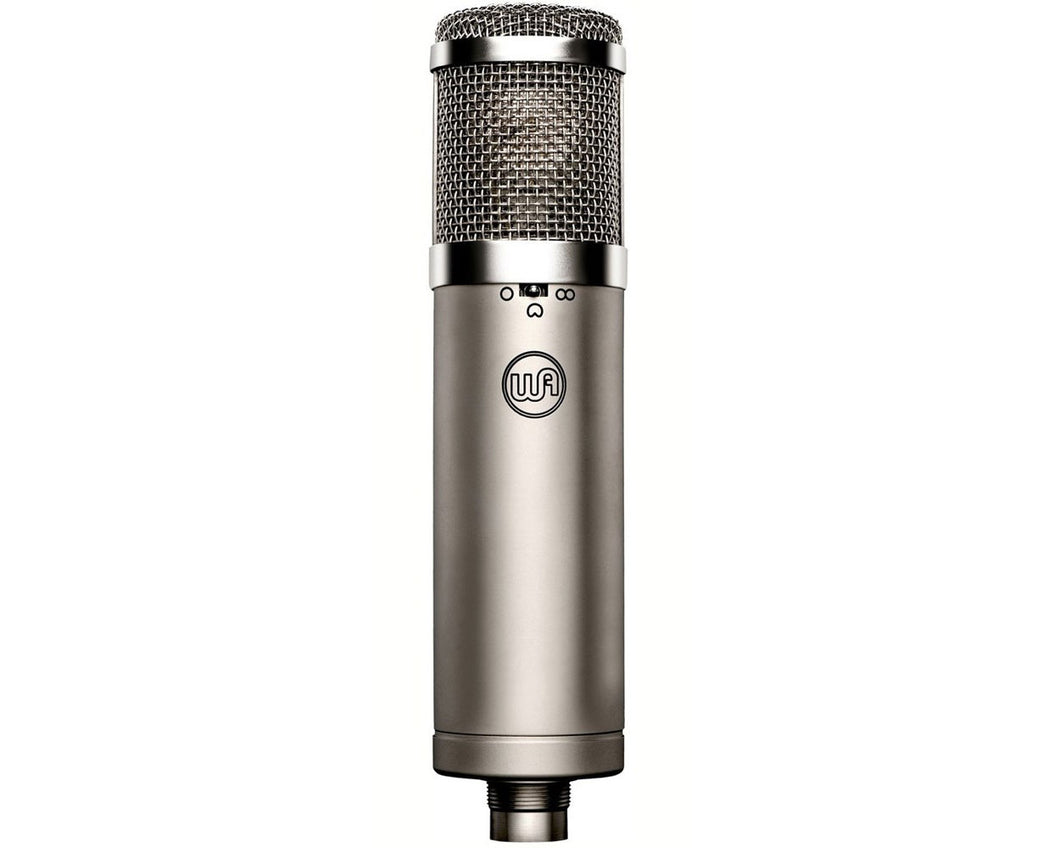

The WA-47jr is a contemporary multi-pattern, transformerless, FET condenser mic designed to deliver the sound profile of the coveted '47-style tube microphone at an unthinkable price. Like the original vintage U47 tube microphone, the 47jr features a proper large-diaphragm 34mm K-47-style capsule. This capsule is so revered for its ability to capture detail with analogue depth, that it has been used as the basis for several ultra-unattainable microphone designs of the last half-century. Combining possibly the greatest condenser capsule of all time with our carefully crafted, modern circuit delivers that analogue warmth and pristine detail for capturing everything from vocals to toms to acoustic guitar. With three polar patterns, a -10dB pad, and 70Hz Hi-Pass filter, the WA-47jr will easily become the most versatile mic in your locker.
Technical Specifications
- FET Transformerless '47 Style Condenser Microphone.
- Custom True '47 Capsule Reproduction (K47 Style)
- Model# WA-47-B-80v.
- Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS * Mylar (PET Film).
- Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.
- Pad: -10db
- High-Pass Filter: 70Hz
- Self-Noise: 9dBA
- Dynamic Range: 138dBA
- Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors
- Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
- Frequency Range: 20 Hz~20 KHz
- Sensitivity: 10mV/Pa Or -40dB
- Output Impedance: 100 Ohms
- Rated Load Impedance: ≥1kOhms
- Equivalent Noise: 10dBA (IEC651)
- Total Weight: 1.1 Lbs
- Mic Diameter: 52mm
- Mic Length: 210mm
Includes Shockmount, Hard Mount, Zipper Storage Pouch
Video: https://youtu.be/YS0_efdiLT8
Product Specs
- Item Number: 24204
- Make: Warm Audio
- Model: WA47JR FET Condenser Microphone
- Condition: Brand New
- Finish: Silver
- Categories: pro-audio ⇒ microphones
- MPN: WAR-WA47 JNR
- UPC: 783079144348
