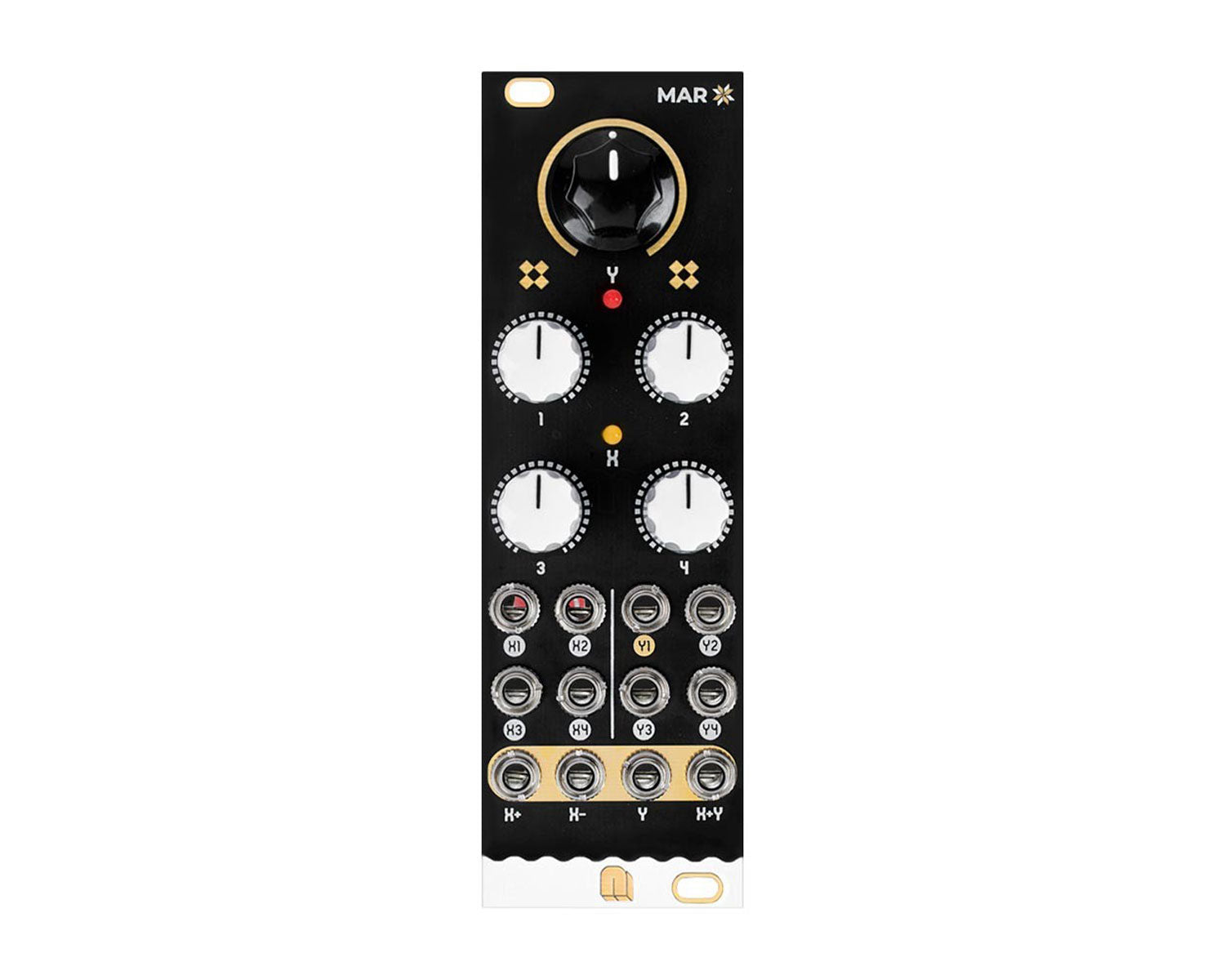

The Nanomodules MAR is an 8HP multichannel dual mixer module.
Both mixers are capable of mixing audio, CV and gate signals because they are DC coupled. MAR has two independent 4-channels mixers:
Mixer X: Is a four channel mixer with gain control for each channel. The potentiometers use logarithmic tape to have good control with audio signals. This mixer features two outputs, the mixer output and its inverted. The output level is shown in the LED.
Mixer Y: Is a four channel mixer with gain control for the sum of the Y channels. If no jack is connected to the input Y1, the output of the Mixer X is normalled to Mixer Y. The potentiometer use logarithmic tape to have good control with audio signals. This mixer features one output, the sum of the 4 channels. The output level is shown in the LED.
This Mixer can work as two 4-1 Mixer, or 7-1 Mixer with global gain control.
INPUTS:
- 4 Mixer X inputs.
- 4 Mixer Y inputs.
OUTPUTS:
- Mixer X output.
- Inverted Mixer X output.
- Mixer Y output.
- Mixer X + Mixer Y output.
Video: https://youtu.be/Z1CP161hRPk
Product Specs
- Item Number: 25635
- Make: NANO Modules
- Model: Mar
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator CV Modulation Mixer
- Made In: Spain
- MPN: NAN-MAR
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 8 HP 15 mm deep
- Power: 16 mA +12V 16 mA -12V 0 mA 5V
