* This item is not currently in stock, orders will be fulfilled when the item becomes available.

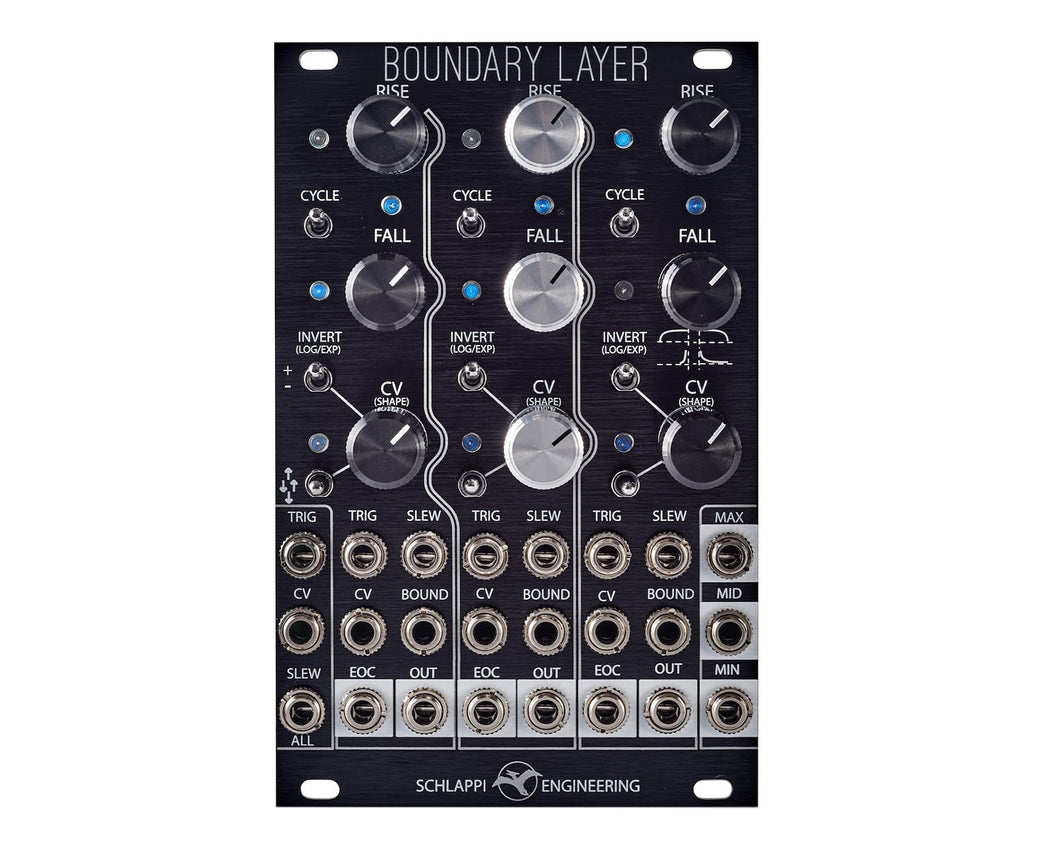

Boundary Layer is a triple cycling slew acting as a swiss army knife of modulation functions. Each of the channels can act individually as:
- A modulation oscillator
- Voltage controlled slew (including portamento)
- AR/AD envelope (decay or release determined by choice of input).
They are tied together by three inputs which affect all channels as well as three outputs which select the MAX, MID, and MIN of all three voltages.
Features
- 3 separate channels
- 3 global inputs
- 3 combined outputs MAX/MID/MIN
- Oscillates from low LFO rate (a minute?) to audio rate (>10kHz with exponential feedback)
- A CV input switchable between RISE/FALL/BOTH
- Bound input for simultaneous control over cycling rate and amplitude
- TRIG input for AD envelopes
- SLEW input for AR envelopes and portamento or filtering
- EOC ouput header switchable between EOR and EOF
- 16 HP
- Skiff friendly 32mm depth (including cable)
- Current draw: +12V 170mA, -12V 100mA
Product Specs
- Item Number: 37392
- Make: Schlappi Engineering
- Model: Boundary Layer - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: United States
- MPN: SE-BOUNDLAYBLK
