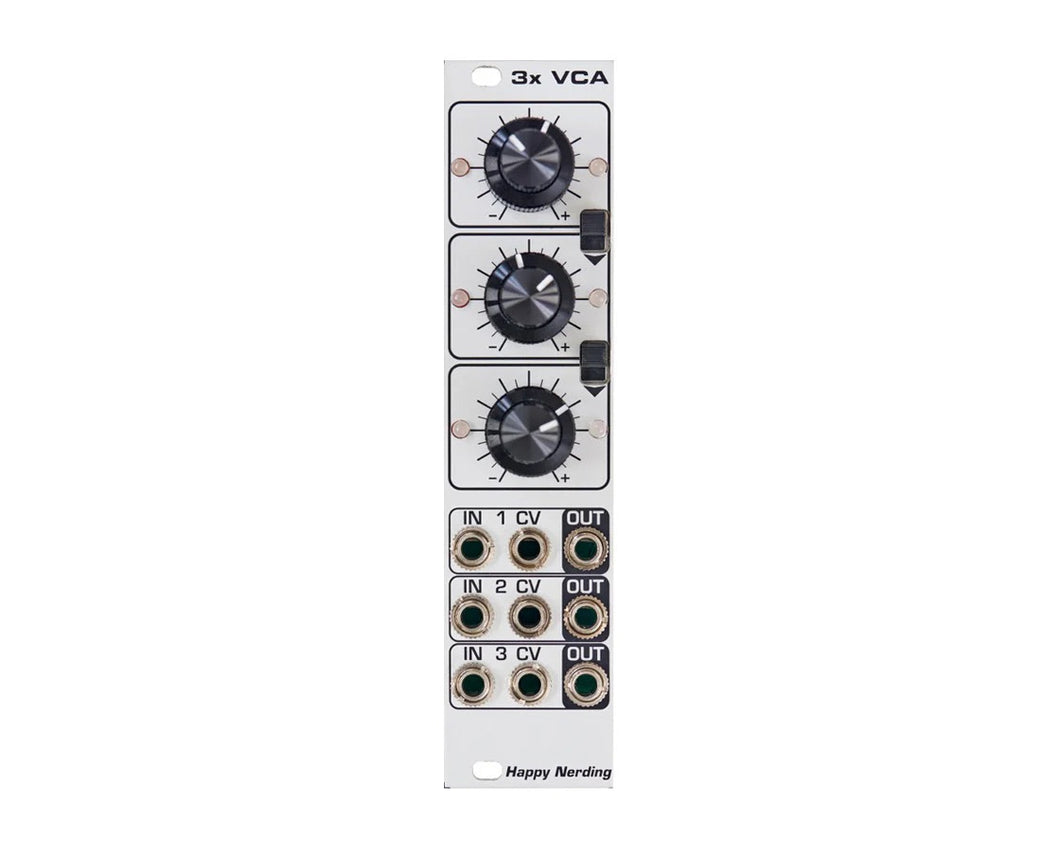

The Happy Nerding 3x VCA features three high class amplifier circuits with linear characteristic. Thanks to AC/DC compatibility, a very low noise floor and basically no distortion, the module is both a great partner for control voltages and audio material as well.
Besides a signal input and output, each VCA has its own CV input. The dual potentiometers regulate levels and bipolar CV attenuation values of all amplifiers. Using these rather unusual, yet very practical components, it was possible to equip the 3x VCA with a front panel that is only 6 HP wide.
Switches allow you to feed the results of one amplifier to the output of the next amplifier, so we can get 1+2, 2+3, and 1+2+3 outputs mix. Two-coloured LEDs visualise CV and output signals.
Video: https://youtu.be/ap0tydA5xfs
Product Specs
- Item Number: 32389
- Make: Happy Nerding
- Model: 3x VCA - Silver
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: VCA Mixer
- Made In: Spain
- MPN: HN-3xVCASLV
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 35 mm deep
- Power*: 60 mA +12V 60 mA -12V 0 mA 5V
* User contributed details
