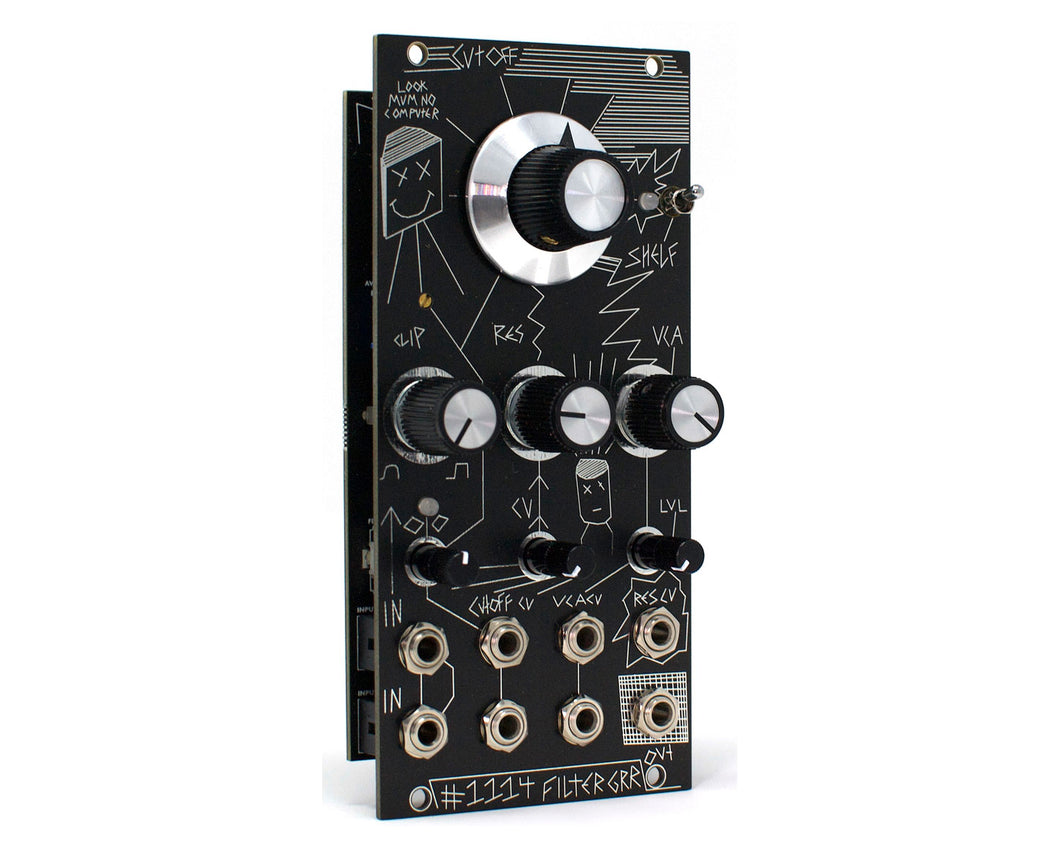

Look Mum No Computer continue their collaboration with Funque Mod to bring more Cosmo format modules to eurorack with the #1114 Filter Grr Filter/VCA module.
Coming from a want for a smaller filter for some voices, this, an oscillator and an envelope generator can be put together to be a small synth voice with distortion and uniquely strange characteristics.
The filter has different behavior depending on where the oscillator is in the offset. It’s well suited for unipolar waveforms (all in + territory as in the #1222 Performance VCO) but still works great with bipolar ones.
Starting from the LM13700 data sheet lowpass filter, the circuit has been pushed, tweaked and expanded to produce some very funky sounds indeed. It’s full of character and you can even get it to step and stuff. It’s proper odd.
Its a funky filter that sounds completely different depending on wether you put unipolar or bipolar waveforms into it (you can bounce between with the Shelf switch to increase its characteristics)
Features:
- Voltage control over resonance.
- Attenuverter on filter frequency input.
- Built in VCA on the output.
- Clipping circuit that isn’t Diode Clipping… It literally works by just turning everything up too much.
-
Shelf switch offsets the waveform to make it clip asymmetrically more easily, but also makes the resonance go wild.
-
Power consumption: 21mA (+12V), 11mA (-12V)
- Width: 12 HP
- Depth: 25 mm (inc. power connector)
Video: https://youtu.be/F3JwFnwfPaQ
Product Specs
- Item Number: 24087
- Make: Look Mum No Computer
- Model: 1114 Filter Grr Filter/VCA module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: United Kingdom
- MPN: LMNC-1114
