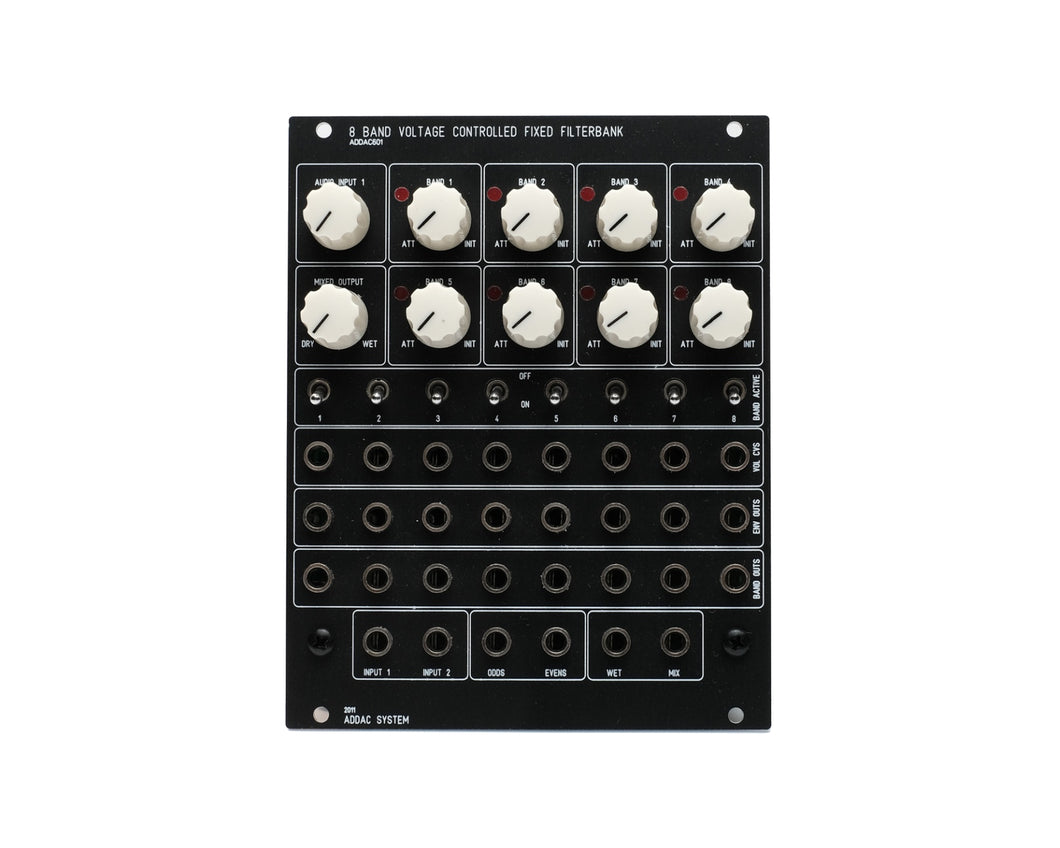

The ADDAC601 Analog Filterbank will have you shaping the spectrum of your sound "tout de suite".
With its 8 fixed frequencies, this filterbank has two additional features that you won't find anywhere else. Each of the 8 band volumes can be controlled through a linear high performance VCA, which adds great dynamics and new abilities to the art of filtering. Additionally this module also doubles as an envelope follower, with a dedicated CV output per band.
It features numerous output options: you can select between individual bands, the full processed sound, a wet/dry signal and even choose between odd or even frequencies.
Plus you can add up to two different signals, which are mixed internally by the ADDAC601 inputs.
Silver panel, black text and black Davies knobs available by special order.
Product Specs
- Item Number: 20254
- Make: ADDAC System
- Model: ADDAC601 VC Fixed Filterbank
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter Envelope Follower VCA
- Made In: Portugal
- MPN: ADDAC601
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 20 HP 55 mm deep
- Power*: 340 mA +12V 250 mA -12V 0 mA 5V
* User contributed details
