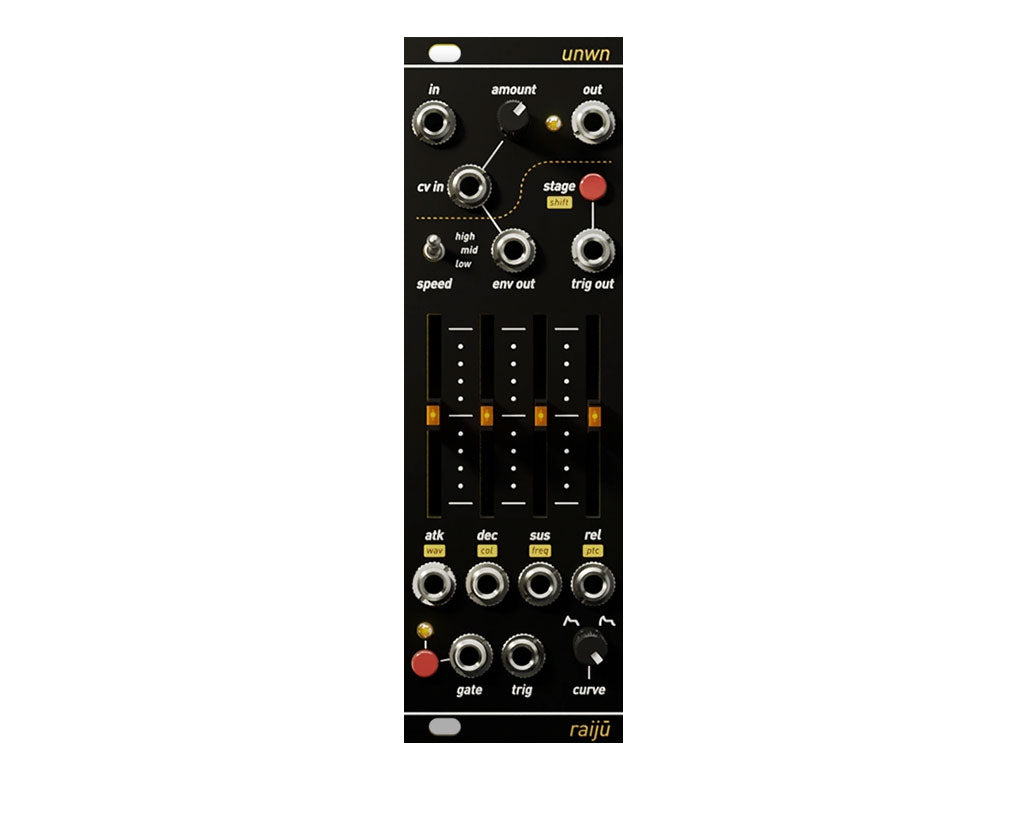

The Raiju (雷獣) is an 8HP Percussive voice "hidden" inside a combo Vactrol LPG + envelope module.
ADSR Envelope generator
Digital envelope generator with cv control over each stage, three selectable, configurable, ranges, End-Of-Stage output (you can toggle between All stages, Attack, Decay, Sustain and Release) and a shape control pot, going from linear to exponential.
Analog LPG The lpg can be controlled by the internal envelope or an external trig/cv, it's input is normalled to the oscillator, simply plug an external audio source to override it. It uses a vtl5c3/2 vactrol from XVive.
Percussive Oscillator The internal digital oscillator has been developed and fine tuned for percussive sounds, with it's macro-controlled FM Oscillator (noise or sine mod osc with configurable ratio), bandpassed triangle core, a 5-stage, buchla-style waveshaper and pitch envelope. When Raiju is used as a voice you can route the CV inputs to selected envelope or oscillator parameters.
Features:
- ADSR Envelope generator:
- Range selector (up to 100s per stage)
- Shape control
- Configurable EOS output
- Complex Triangle core digital oscillator:
- Rich sound palette, from mellow sounds to harsh noises
- 5-stages wavefolder with gain and offset control macro
- Pitch decay envelope
- Integrated Web configurator:
- Personalise the module behaviour to fit your playing style
- Load, save and backup presets
- Update the firmware without the need of a computer.
Video: https://youtu.be/feUQIpI2XQM
Product Specs
- Item Number: 25850
- Make: Unknown Devices
- Model: Raiju (雷獣) - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Digital Drum Envelope Generator Low Pass Gate Oscillator Synth Voice Waveshaper
- Made In: Italy
- MPN: UD-RB
- Modular Grid: Eurorack ⓘ +
- Dimensions: 8 HP 25 mm deep
- Power: 110 mA +12V 10 mA -12V 0 mA 5V
