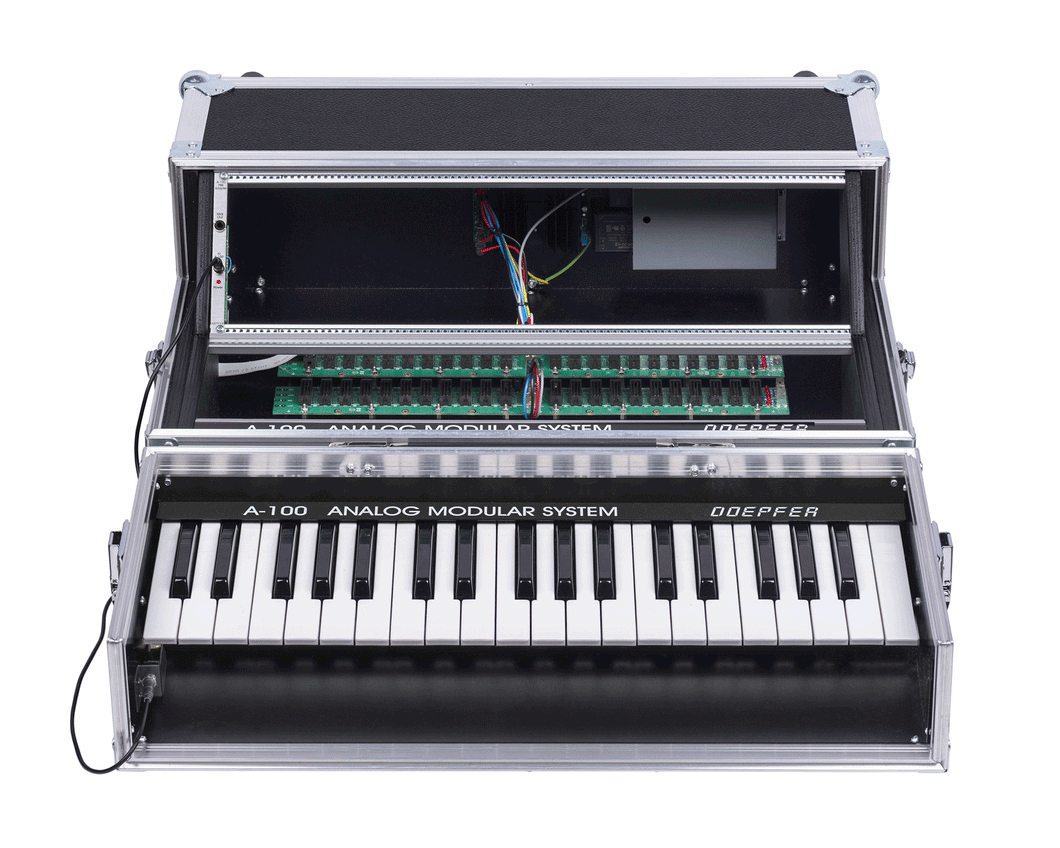

The A-100PBK is essentially the same as the standard A-100 Base A-100PB, but it comes equipped with a 37-key keyboard (Fatar 37TP/9 semi-weighted with monophonic aftertouch) that is mounted in the case lid.
The keyboard is connected to a 2HP connection module through a 3.5mm stereo cable, which is mounted in the upper or lower row of the A-100PBK. The connection module features a MIDI output (3.5mm stereo MIDI standard) that transmits the keyboard's MIDI data (MIDI channel 1, lowest note number 36, note on/off, and aftertouch).
Users can connect a polyphonic (A-190-5) or monophonic CV/Gate interface (e.g., A-190-3, A-190-4) to the MIDI output of the connection module. Two jumpers are available to choose between the two MIDI standards for 3.5mm MIDI connectors. The A-100PBK also includes a 3.5mm-to-DIN5 adapter cable.
Dimensions: - Outside: approx. 550 (width) x 210 (height) x 420 (depth) mm - Inside: 2 x 94 HP x 3 U (i.e. 10 HP more than the standard A-100 Base A-100PB) - Usable depth for A-100 modules front row: approx. 70 mm - Usable depth for A-100 modules rear row: approx. 90 mm
- 2 bus boards witg a max output current of +12V/2000mA, -12V/1200mA, +5V/4000mA
Please note the following:
- Do not mount modules with a total height of over 40mm above the keyboard (e.g., joystick modules).
- Pre-patching of modules must also be less than 40mm, so no stackcables should be used.
- Before mounting the A-100PBK lid, verify that the keyboard has sufficient space across its full width. Otherwise, the lid must not be mounted to prevent damage to the keyboard.
- Damages to the keyboard caused by insufficient space, such as due to modules or patch cables over 40mm, are not covered by warranty.
- The A-100PBK lid is not compatible with the A-100PB since the A-100PBK is longer by about 50mm due to the keyboard dimensions.
Product Specs
- Item Number: 25628
- Make: Doepfer
- Model: A-100PBK Case with Integrated 3-Octave Keyboard
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ cases
- Made In: Germany
- MPN: A-100PBK
- EAN: 4250711105310
