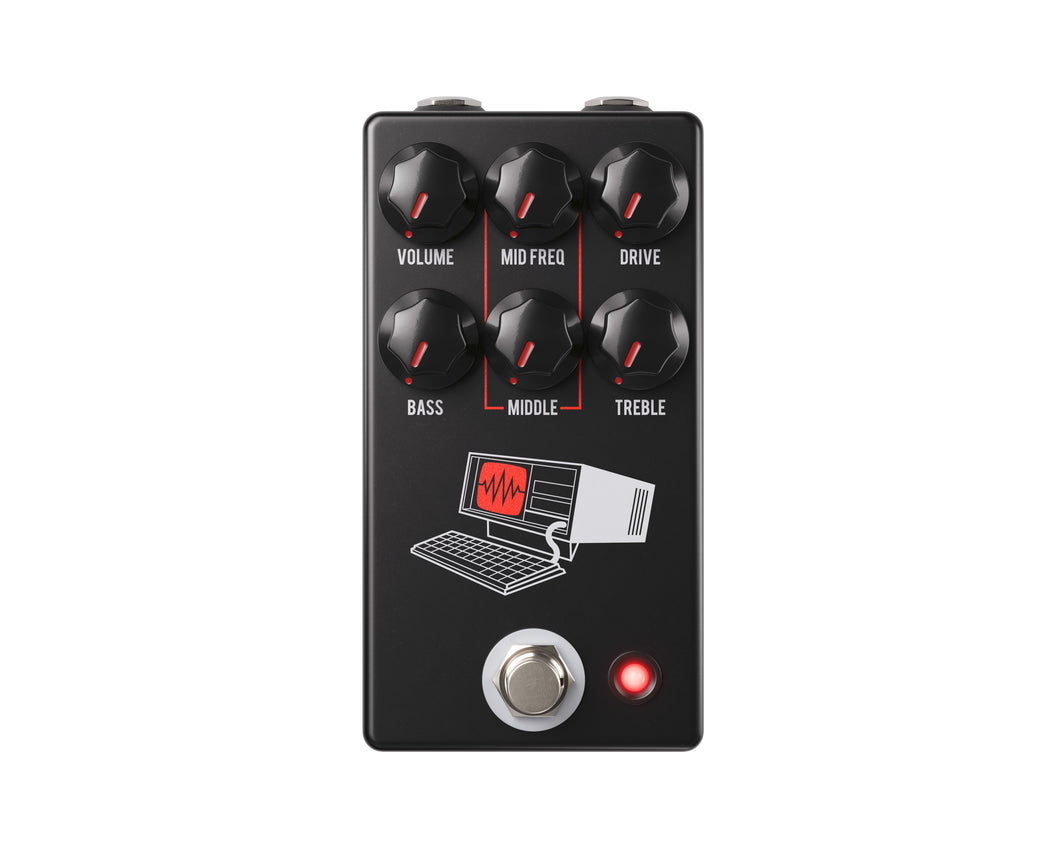

The JHS Hard Drive is a fresh approach to achieving high gain distortion in a pedal format, the Hard Drive includes cascaded gain stages and a hard limiting circuit, followed by a class AB amplifier section that drives a “sweepable midrange” EQ and Baxandall bass and treble controls. With its generous external controls, the Hard Drive lets you dial in everything from grinding tube amp crunch to a bona fide wall of distortion that can easily cut through any stage or studio mix.
Volume - Controls the overall volume of the pedal. Left is less, right is more.
Mid Freq - Controls which mid frequencies are boosted or scooped by the Mid control.
Drive (Distortion) - Controls the amount of drive (distortion). Left is less, right is more.
Bass - Controls the bass frequencies level. Noon is flat, left is cut, right is boosted.
Middle - Controls the mid frequencies level. Noon is flat, left is scooped, right is boosted. The frequency range is set by the Mid Freq control.
Treble - Controls the treble frequencies level. Noon is flat, left is cut, right is boosted.
Silent soft touch switching with a buffered bypass.
Video: https://youtu.be/9MLQh7M5IpU
Product Specs
- Item Number: 33120
- Make: JHS Pedals
- Model: Hard Drive - Black
- Condition: Brand New
- Finish: Black
- Categories: effects-and-pedals ⇒ distortion ⇒ pedal
- Function: Distortion
- Made In: United States
- MPN: HDBK
- UPC: 650415212682
- Modular Grid: Pedals ⓘ ＋
- Dimensions*: 62 mm wide 121 mm high
- Power*: 78 mA / 9 V DC / Negative Center
* User contributed details
