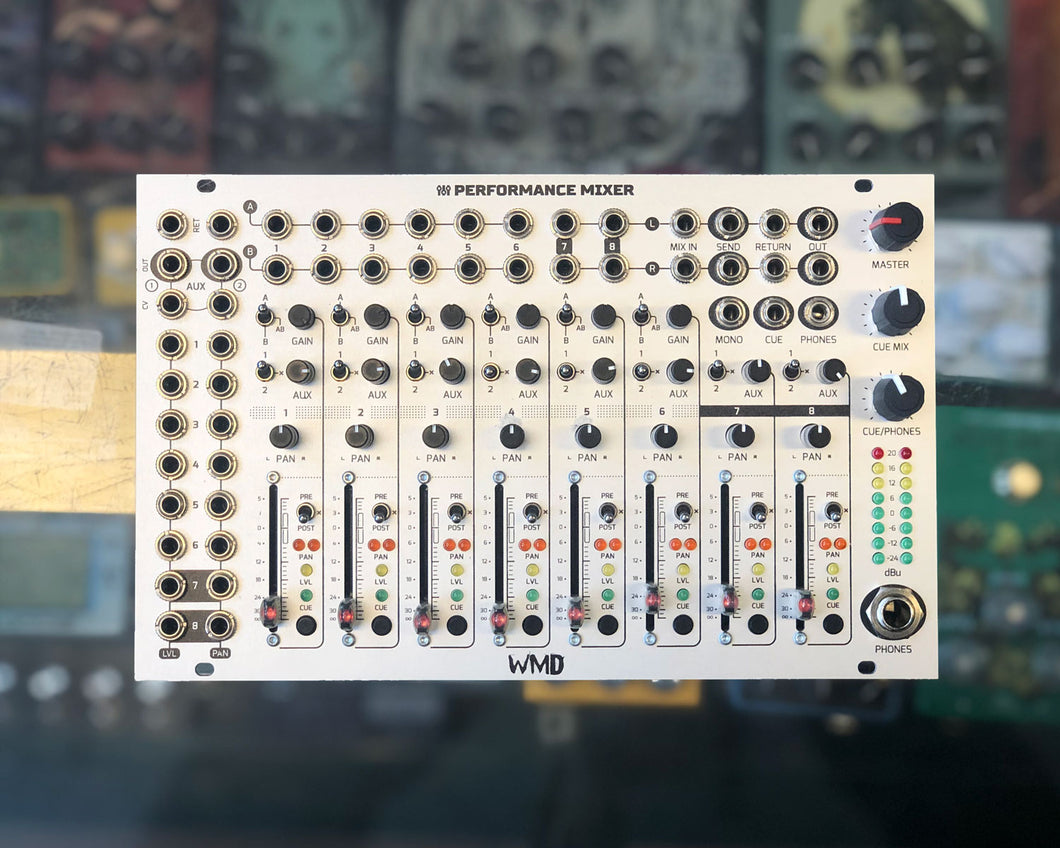

The Performance Mixer is a 40HP 8 channel audio mixer designed specifically for live performance and jam sessions within the modular ecosystem. With 12 audio inputs for the first 6 channels, and 2 true stereo channels, there is plenty of room for all of your modular signals and more.
2 mono auxiliary sends with dual mono returns, stereo send and return, and another set of stereo mix inputs give you the routing you need to send signals to interesting effects as well as utility uses such as bus compression and master equalizers.
Tired of not being able to tune oscillators and program sequencers on the fly? Not to worry, the performance mixer also includes a cue mix section so you can monitor your incoming signals in headphones before sending them to the front of house mix. Just like on a traditional DJ mixer, the cue mix knob determines how much of the cue vs the FOH mix you hear in the phones.
Two headphone outputs for convenience and teamwork. Collaborate with friends with out wasting any channels by sending the stereo output of their mixer into the unity gain mix input. Monitor with the dual headphone outputs and you can both hear the entire mix.
- 6 Mono channels with 2 switchable or summed inputs gives you a total of 12 inputs.
- 2 True stereo channels
- CUE Mixing allows you to monitor signals before they hit front of house
- Voltage control over Level and Panning for all channels
- 2 Auxiliary sends, switchable for each channel
- Aux sends are available Pre and Post fader via switch
- 2 mono and 2 stereo unity gain inputs for adding sub-mixes or external audio sources
- 2 Headphone outs, 1-3.5 mm and 1- ¼ inch for collaboration and convenience
- Expandable with PM MUTES and PM CHANNELS modules
Included is the PM-DB25 which is a 4HP proprietary expander module for the Performance Mixer that allows for direct access to each output, balanced, including channels expand and the main outs.
Connect a Db25 snake to your choice of connector on the other end and record each individual out without destruction from the faders or Mutes. Reference the stereo recording while making edits in your DAW or tape machine.
Features:
- Individual balanced outs for every channel, including the master L/R
- Pre fader outputs for non-destructive recording
- Two DB25 connectors allow you to use a snake with connections of your choice
- Connects to your Performance Mixer and Channels Expander in the back and keeps your patch clean
Video: https://youtu.be/uLgzFj01pYw
Product Specs
- Item Number: 24263
- Make: WMD
- Model: Performance Mixer & PM-DB25 Expander Module Bundle - Silver
- Condition: Excellent
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: United States
- MPN: 24263
